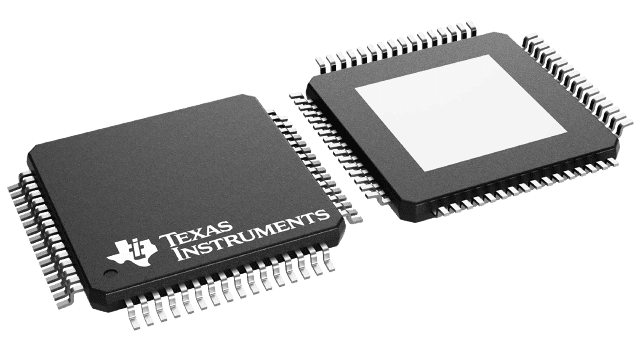

ADS1274IPAPT Texas Instruments - Yeehing Electronics
24-Bit, 144kSPS, 4-Ch Simultaneous-Sampling Delta-Sigma ADC for Wide Bandwidth Applications
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 24.757 |
| 100 — 249 | 22.006 |
| 250 — 999 | 18.09 |
| 1,000 + | 11.33 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS1274 |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-64 |
| Resolution | 24 bit |
| Number of Channels | 4 Channel |
| Sampling Rate | 144 kS/s |
| Input Type | Single-Ended |
| Interface Type | SPI |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Analog Supply Voltage | 4.75 V to 5.25 V |
| Digital Supply Voltage | 1.65 V to 2.2 V |
| SNR - Signal to Noise Ratio | 111 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Features | Daisy-Chainable |
| Height | 1 mm |
| Length | 10 mm |
| Number of Converters | 4 Converter |
| Power Consumption | 275 mW |
| Width | 10 mm |
| Brand | Texas Instruments |
| DNL - Differential Nonlinearity | +/- 1 LSB |
| INL - Integral Nonlinearity | +/- 0.0012 % FSR |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 1.65 V to 3.6 V, 4.75 V to 5.25 V |
| Pd - Power Dissipation | 420 mW |
| Product Type | ADCs - Analog to Digital Converters |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.009108 oz |
For more information, please refer to datasheet
Documents
| ADS1274IPAPT Datasheet |
More Information
Based on the single-channel ADS1271, the ADS1274 (quad) and ADS1278 (octal) are 24-bit, delta-sigma (ΔΣ) analog-to-digital converters (ADCs) with data rates up to 144k samples per second (SPS), allowing simultaneous sampling of four or eight channels. The devices are offered in identical packages, permitting drop-in expandability.
