Description

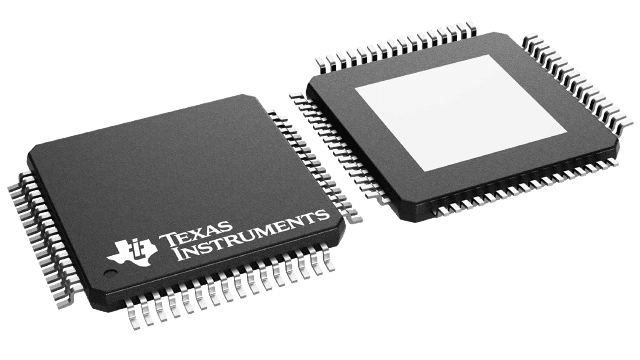

ADS1278HPAP Texas Instruments - Yeehing Electronics
High-Temperature Quad/Octal, Simultaneous-Sampling, 24-Bit Analog-to-Digital Converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 173.255 |
| 100 — 249 | 159.505 |
| 250 — 999 | 137.504 |
| 1,000 + | 121.28 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS5270 |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-80 |
| Resolution | 12 bit |
| Number of Channels | 8 Channel |
| Sampling Rate | 40 MS/s |
| Input Type | Differential |
| Interface Type | Serial |
| Architecture | Pipeline |
| Reference Type | External, Internal |
| Analog Supply Voltage | 3.3 V |
| Digital Supply Voltage | 3 V to 3.6 V |
| SNR - Signal to Noise Ratio | 70.5 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tray |
| Features | Low Power |
| Height | 1 mm |
| Length | 12 mm |
| Number of Converters | 8 Converter |
| Output Type | LVDS |
| Power Consumption | 907 mW |
| Width | 12 mm |
| Brand | Texas Instruments |
| Development Kit | ADS5270EVM |
| DNL - Differential Nonlinearity | +/- 0.5 LSB |
| ENOB - Effective Number of Bits | 11.3 Bit |
| INL - Integral Nonlinearity | +/- 2 LSB |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3 V to 3.6 V |
| Pd - Power Dissipation | 948 mW |
| Product Type | ADCs - Analog to Digital Converters |
| SFDR - Spurious Free Dynamic Range | 85 dB |
| SINAD - Signal to Noise and Distortion Ratio | 70 dB |
| Factory Pack Quantity | 96 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.012984 oz |
For more information, please refer to datasheet
Documents
| ADS1278HPAP Datasheet |
More Information
Based on the single-channel ADS1271, the ADS1278 (octal) is a 24-bit, delta-sigma (ΔΣ) analog-to-digital converter (ADC) with data rates up to 128 k samples per second (SPS), allowing simultaneous sampling of eight channels.
