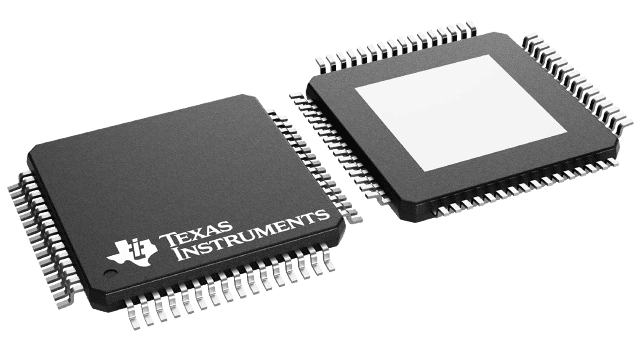

ADS1278MPAPTEP Texas Instruments - Yeehing Electronics
Enhanced Product Octal, 144kHz, Simultaneous Sampling 24-Bit Delta Sigma ADC
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 60.219 |
| 100 — 249 | 53.528 |
| 250 — 999 | 44.003 |
| 1,000 + | 27.55 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS1271 |
| Mounting Style | SMD/SMT |
| Package / Case | TSSOP-16 |
| Resolution | 24 bit |
| Number of Channels | 1 Channel |
| Sampling Rate | 105 kS/s |
| Input Type | Differential |
| Interface Type | SPI |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Analog Supply Voltage | 4.75 V to 5.25 V |
| Digital Supply Voltage | 1.65 V to 3.6 V |
| SNR - Signal to Noise Ratio | 109 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Packaging | Tube |
| Features | Daisy-Chainable |
| Height | 1 mm |
| Length | 5 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 92 mW |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| DNL - Differential Nonlinearity | +/- 1 LSB |
| INL - Integral Nonlinearity | +/- 0.0015 % FSR |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 1.8 V to 3.3 V, + 5 V |
| Pd - Power Dissipation | 136 mW |
| Product Type | ADCs - Analog to Digital Converters |
| Reference Voltage | 2.5 V |
| Factory Pack Quantity | 90 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.002183 oz |
For more information, please refer to datasheet
Documents
| ADS1278MPAPTEP Datasheet |
More Information
Based on the single-channel ADS1271, the ADS1278 (octal) is a 24-bit, delta-sigma (ΔΣ) analog-to-digital converter (ADC) with data rates up to 128 k samples per second (SPS), allowing simultaneous sampling of eight channels.
