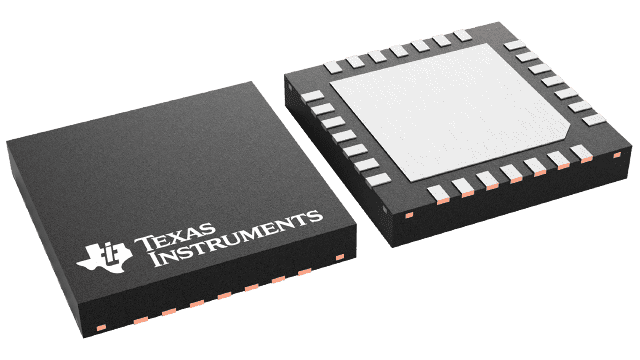

ADS1293CISQE/NOPB Texas Instruments - Yeehing Electronics
24-bit, 3-ch, Low-Power Analog Front END (AFE) for ECG Applications
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 12.49 |
| 100 — 249 | 10.91 |
| 250 — 999 | 8.412 |
| 1,000 + | 5.27 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog Front End - AFE |
| RoHS | Y |
| Series | ADS1293 |
| Type | Biopotential |
| Resolution | 24 bit |
| Sampling Rate | 25.6 kS/s |
| Number of Channels | 3 Channel |
| Interface Type | Serial, 4-Wire, SPI |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.7 V |
| Minimum Operating Temperature | - 20 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-28 |
| Packaging | Reel |
| Features | Oscillator |
| Input Type | Differential |
| Number of Converters | 3 Converter |
| Power Consumption | 0.9 mW |
| Architecture | Sigma-Delta |
| Brand | Texas Instruments |
| Reference Type | Internal |
| Analog Supply Voltage | 2.7 V to 5.5 V |
| Development Kit | ADS1293EVM |
| Digital Supply Voltage | 1.65 V to 3.6 V |
| INL - Integral Nonlinearity | 2 ppm |
| Moisture Sensitive | Yes |
| Operating Supply Current | 600 nA |
| Operating Supply Voltage | 2.7 V to 5.5 V |
| Product Type | Analog Front End - AFE |
| Reference Voltage | 2.4 V |
| SNR - Signal to Noise Ratio | 110 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.002247 oz |
For more information, please refer to datasheet
Documents
| ADS1293CISQE/NOPB Datasheet |
More Information
The ADS1293 incorporates all features commonly required in portable, low-power medical, sports, and fitness electrocardiogram (ECG) applications. With high levels of integration and exceptional performance, the ADS1293 enables the creation of scalable medical instrumentation systems at significantly reduced size, power, and overall cost.
