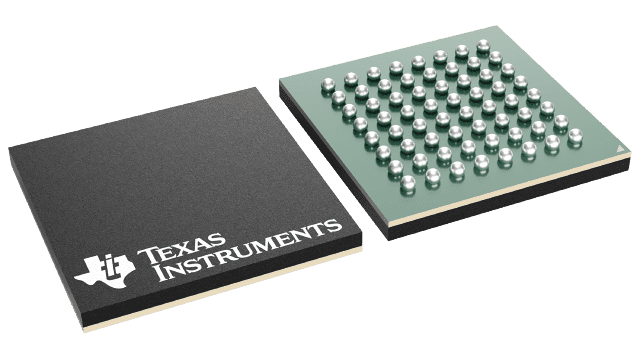

ADS1294CZXGT Texas Instruments - Yeehing Electronics

4-Channel 24-Bit ADC With Integrated ECG Front End

Pricing (USD)

Quantity	Unit Price
1 — 99	20.758
100 — 249	18.132
250 — 999	13.981
1,000 +	8.75

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

ADS1294CZXGT Datasheet

More Information

The ADS1294, ADS1296, ADS1298 (ADS129x) and ADS1294R, ADS1296R ADS1298R (ADS129xR) are a family of multichannel, simultaneous sampling, 24-bit, delta-sigma (ΔΣ) analog-to-digital converters (ADCs) with built-in programmable gain amplifiers (PGAs), internal reference, and an onboard oscillator. The ADS129x and ADS129xR incorporate all of the features that are commonly required in medical electrocardiogram (ECG) and electroencephalogram (EEG) applications. With high levels of integration and exceptional performance, the ADS129x and ADS129xR enables the development of scalable medical instrumentation systems at significantly reduced size, power, and overall cost.
