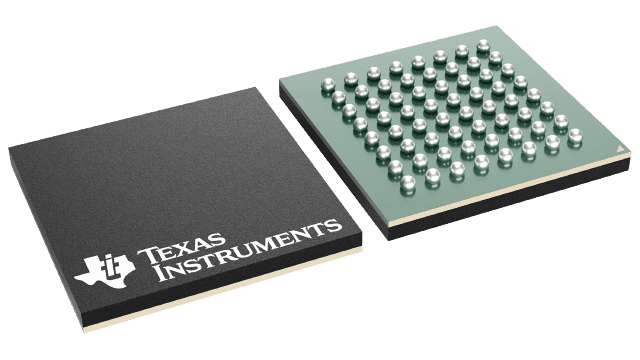

ADS1294RIZXGT Texas Instruments - Yeehing Electronics
4-Channel 24-Bit ADC With Integrated Respiration Impedance and ECG Front End
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 21.63 |
100 — 249 | 18.894 |
250 — 999 | 14.568 |
1,000 + | 9.12 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Analog to Digital Converters - ADC |
RoHS | Y |
Series | ADS1294R |
Mounting Style | SMD/SMT |
Package / Case | NFBGA-64 |
Resolution | 24 bit |
Number of Channels | 4 Channel |
Sampling Rate | 32 kS/s |
Input Type | Differential |
Interface Type | SPI |
Architecture | Sigma-Delta |
Analog Supply Voltage | 2.7 V to 5.25 V |
Digital Supply Voltage | 1.65 V to 3.6 V |
SNR - Signal to Noise Ratio | 112 dB |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Packaging | Reel |
Features | Daisy-Chainable, GPIO, Oscillator, PGA |
Number of Converters | 4 Converter |
Power Consumption | 4.1 mW |
Brand | Texas Instruments |
INL - Integral Nonlinearity | 8 ppm |
Moisture Sensitive | Yes |
Operating Supply Current | 500 uA |
Operating Supply Voltage | 1.65 V to 3.6 V, 2.7 V to 5.25 V |
Pd - Power Dissipation | 5.4 mW |
Product Type | ADCs - Analog to Digital Converters |
Factory Pack Quantity | 250 |
Subcategory | Data Converter ICs |
Unit Weight | 0.009524 oz |
For more information, please refer to datasheet
Documents
ADS1294RIZXGT Datasheet |
More Information
The ADS1294, ADS1296, ADS1298 (ADS129x) and ADS1294R, ADS1296R ADS1298R (ADS129xR) are a family of multichannel, simultaneous sampling, 24-bit, delta-sigma (ΔΣ) analog-to-digital converters (ADCs) with built-in programmable gain amplifiers (PGAs), internal reference, and an onboard oscillator. The ADS129x and ADS129xR incorporate all of the features that are commonly required in medical electrocardiogram (ECG) and electroencephalogram (EEG) applications. With high levels of integration and exceptional performance, the ADS129x and ADS129xR enables the development of scalable medical instrumentation systems at significantly reduced size, power, and overall cost.
