ADS1296RIZXGR Texas Instruments - Yeehing Electronics

6-Ch 24-Bit ADC With Integrated Respiration Impedance and ECG Front End

Pricing (USD)

Quantity	Unit Price
1 — 99	24.24
100 — 249	21.546
250 — 999	17.712
1,000 +	11.09

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Series	ADS1296R
Mounting Style	SMD/SMT

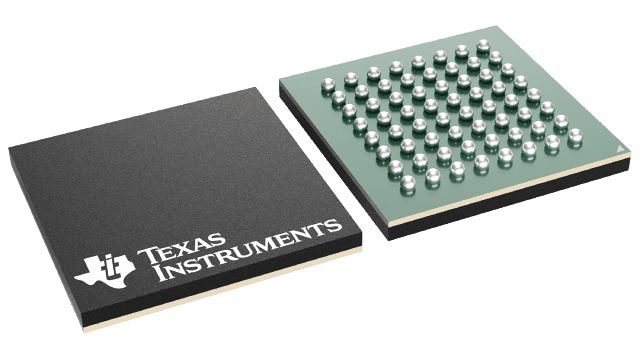

Package / Case	NFBGA-64
Resolution	24 bit
Number of Channels	6 Channel
Sampling Rate	32 kS/s
Input Type	Differential
Interface Type	SPI
Architecture	Sigma-Delta
Analog Supply Voltage	2.7 V to 5.25 V
Digital Supply Voltage	1.65 V to 3.6 V
SNR - Signal to Noise Ratio	112 dB
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Features	Daisy-Chainable, GPIO, Oscillator, PGA
Number of Converters	6 Converter
Power Consumption	5.3 mW
Brand	Texas Instruments
INL - Integral Nonlinearity	8 ppm
Moisture Sensitive	Yes
Operating Supply Current	500 uA
Operating Supply Voltage	1.65 V to 3.6 V, 2.7 V to 5.25 V
Pd - Power Dissipation	5.4 mW
Product Type	ADCs - Analog to Digital Converters
Factory Pack Quantity	1000
Subcategory	Data Converter ICs

For more information, please refer to datasheet

Documents

ADS1296RIZXGR Datasheet

More Information

The ADS1294, ADS1296, ADS1298 (ADS129x) and ADS1294R, ADS1296R ADS1298R (ADS129xR) are a family of multichannel, simultaneous sampling, 24-bit, delta-sigma (ΔΣ) analog-to-digital converters (ADCs) with built-in programmable gain amplifiers (PGAs), internal reference, and an onboard oscillator. The ADS129x and ADS129xR incorporate all of the features that are commonly required in medical electrocardiogram (ECG) and electroencephalogram (EEG) applications. With high levels of integration and exceptional performance, the ADS129x and ADS129xR enables the development of scalable medical instrumentation systems at significantly reduced size, power, and overall cost.
