ADS1298CZXGR


YeeHing #: Y004-ADS1298CZXGR
Inventory: 2000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

ADS1298CZXGR Texas Instruments - Yeehing Electronics

8-Channel 24-bit ADC With Integrated ECG Front End

Pricing (USD)

Quantity Unit Price
1 — 99 29.65
100 — 249 26.355
250 — 999 21.666
1,000 + 24.00

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Analog to Digital Converters - ADC
RoHS Y
Series ADS1298
Mounting Style SMD/SMT

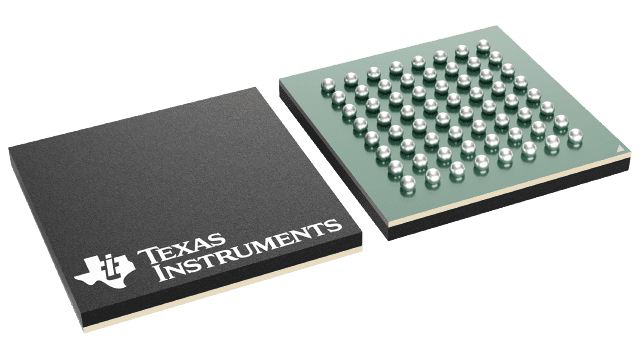

Package / Case NFBGA-64
Resolution 24 bit
Number of Channels 8 Channel
Architecture Sigma-Delta
Analog Supply Voltage 2.7 V to 5.25 V
Digital Supply Voltage 1.65 V to 3.6 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Packaging Reel
Features Daisy-Chainable, GPIO, Oscillator, PGA
Power Consumption 6 mW
Brand Texas Instruments
Development Kit ADS1298ECGFE-PDK
INL - Integral Nonlinearity 8 ppm
Moisture Sensitive Yes
Operating Supply Current 500 uA
Product Type ADCs - Analog to Digital Converters
Factory Pack Quantity 1000
Subcategory Data Converter ICs

For more information, please refer to datasheet

Documents

ADS1298CZXGR Datasheet

More Information

The ADS1294, ADS1296, ADS1298 (ADS129x) and ADS1294R, ADS1296R ADS1298R (ADS129xR) are a family of multichannel, simultaneous sampling, 24-bit, delta-sigma (ΔΣ) analog-to-digital converters (ADCs) with built-in programmable gain amplifiers (PGAs), internal reference, and an onboard oscillator. The ADS129x and ADS129xR incorporate all of the features that are commonly required in medical electrocardiogram (ECG) and electroencephalogram (EEG) applications. With high levels of integration and exceptional performance, the ADS129x and ADS129xR enables the development of scalable medical instrumentation systems at significantly reduced size, power, and overall cost.
