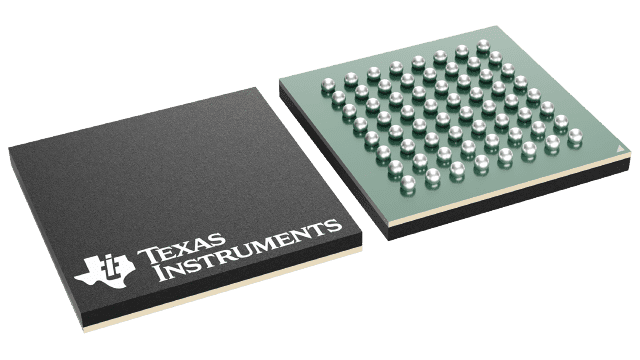

ADS1298RIZXGR


YeeHing #: Y004-ADS1298RIZXGR
Inventory: 4600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

ADS1298RIZXGR Texas Instruments - Yeehing Electronics

24-Bit 8-Ch Analog Front-End With Integrated Respiration Impedance for ECG

Pricing (USD)

Quantity Unit Price
1 — 99 31.132
100 — 249 27.673
250 — 999 22.749
1,000 + 11.67

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Analog to Digital Converters - ADC
RoHS Y
Series ADS1298R
Mounting Style SMD/SMT
Package / Case NFBGA-64
Resolution 24 bit
Number of Channels 8 Channel
Sampling Rate 32 kS/s
Input Type Differential
Interface Type Serial, SPI
Architecture Sigma-Delta
Analog Supply Voltage 2.7 V to 5.25 V
Digital Supply Voltage 1.65 V to 3.6 V
SNR - Signal to Noise Ratio 112 dB
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Packaging Reel
Features Daisy-Chainable, GPIO, Oscillator, PGA
Number of Converters 8 Converter
Power Consumption 6 mW
Product Analog to Digital Converters
Brand Texas Instruments
Development Kit ADS1298RECGFE-PDK
INL - Integral Nonlinearity 8 ppm
Operating Supply Current 500 uA
Operating Supply Voltage 1.65 V to 3.6 V, 2.7 V to 5.25 V
Pd - Power Dissipation 5.4 mW
Product Type ADCs - Analog to Digital Converters
Factory Pack Quantity 1000
Subcategory Data Converter ICs

For more information, please refer to datasheet

Documents

ADS1298RIZXGR Datasheet

More Information

The ADS1294, ADS1296, ADS1298 (ADS129x) and ADS1294R, ADS1296R ADS1298R (ADS129xR) are a family of multichannel, simultaneous sampling, 24-bit, delta-sigma (ΔΣ) analog-to-digital converters (ADCs) with built-in programmable gain amplifiers (PGAs), internal reference, and an onboard oscillator. The ADS129x and ADS129xR incorporate all of the features that are commonly required in medical electrocardiogram (ECG) and electroencephalogram (EEG) applications. With high levels of integration and exceptional performance, the ADS129x and ADS129xR enables the development of scalable medical instrumentation systems at significantly reduced size, power, and overall cost.
