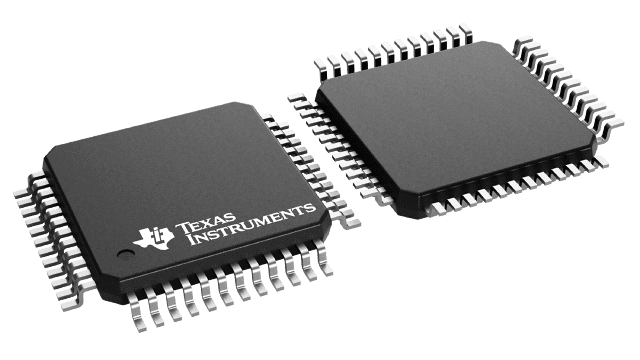

ADS1601IPFBR Texas Instruments - Yeehing Electronics

16-Bit, 1.25MSPS, High Speed and High Precision Delta Sigma ADC

Pricing (USD)

Quantity	Unit Price
1 — 99	12.978
100 — 249	11.336
250 — 999	8.741
1,000 +	6.25

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Series	ADS1601
Mounting Style	SMD/SMT
Package / Case	TQFP-48
Resolution	16 bit
Number of Channels	1 Channel
Sampling Rate	1.25 MS/s
Input Type	Differential
Interface Type	3-Wire
Architecture	Sigma-Delta
Reference Type	External, Internal
Analog Supply Voltage	4.75 V to 5.25 V
Digital Supply Voltage	2.7 V to 5.25 V
SNR - Signal to Noise Ratio	92 dB
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Features	Internal Reference
Height	1 mm
Length	7 mm
Number of Converters	1 Converter
Power Consumption	330 mW
Width	7 mm
Brand	Texas Instruments
Development Kit	ADS1601EVM
DNL - Differential Nonlinearity	0.25 LSB
INL - Integral Nonlinearity	0.75 LSB
Moisture Sensitive	Yes
Operating Supply Voltage	5 V
Pd - Power Dissipation	380 mW
Product Type	ADCs - Analog to Digital Converters
SINAD - Signal to Noise and Distortion Ratio	91 dB
Factory Pack Quantity	1000
Subcategory	Data Converter ICs
Unit Weight	0.004847 oz

For more information, please refer to datasheet

Documents

ADS1601IPFBR Datasheet

More Information

The ADS1601 is a high-speed, high-precision, delta-sigma analog-to-digital converter (ADC) manufactured on an advanced CMOS process. The ADS1601 oversampling topology reduces clock jitter sensitivity during the sampling of high-frequency, large amplitude signals by a factor of four over that achieved by Nyquist-rate ADCs. Consequently, signal-to-noise ratio (SNR) is particularly improved. Total harmonic distortion (THD) is –103dB, and the spurious-free dynamic range (SFDR) is 105dB
