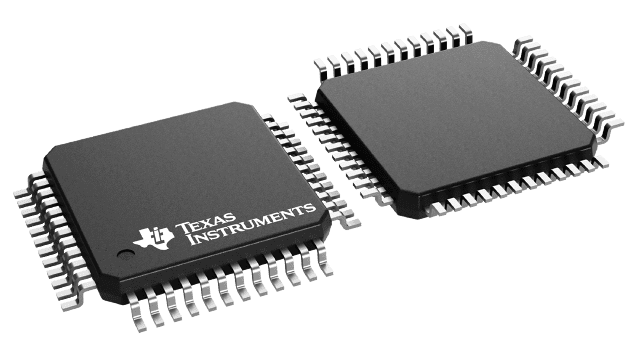

ADS1601IPFBT Texas Instruments - Yeehing Electronics
16-Bit, 1.25MSPS, High Speed and High Precision Delta Sigma ADC
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 15.451 |
| 100 — 249 | 13.497 |
| 250 — 999 | 10.406 |
| 1,000 + | 7.45 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS1601 |
| Mounting Style | SMD/SMT |
| Package / Case | TQFP-48 |
| Resolution | 16 bit |
| Number of Channels | 1 Channel |
| Sampling Rate | 1.25 MS/s |
| Input Type | Differential |
| Interface Type | 3-Wire |
| Architecture | Sigma-Delta |
| Reference Type | External, Internal |
| Analog Supply Voltage | 4.75 V to 5.25 V |
| Digital Supply Voltage | 2.7 V to 5.25 V |
| SNR - Signal to Noise Ratio | 92 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | Internal Reference |
| Height | 1 mm |
| Length | 7 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 330 mW |
| Width | 7 mm |
| Brand | Texas Instruments |
| Development Kit | ADS1601EVM |
| DNL - Differential Nonlinearity | 0.25 LSB |
| INL - Integral Nonlinearity | 0.75 LSB |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 5 V |
| Pd - Power Dissipation | 380 mW |
| Product Type | ADCs - Analog to Digital Converters |
| SINAD - Signal to Noise and Distortion Ratio | 91 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.004847 oz |
For more information, please refer to datasheet
Documents
| ADS1601IPFBT Datasheet |
More Information
The ADS1601 is a high-speed, high-precision, delta-sigma analog-to-digital converter (ADC) manufactured on an advanced CMOS process. The ADS1601 oversampling topology reduces clock jitter sensitivity during the sampling of high-frequency, large amplitude signals by a factor of four over that achieved by Nyquist-rate ADCs. Consequently, signal-to-noise ratio (SNR) is particularly improved. Total harmonic distortion (THD) is –103dB, and the spurious-free dynamic range (SFDR) is 105dB
