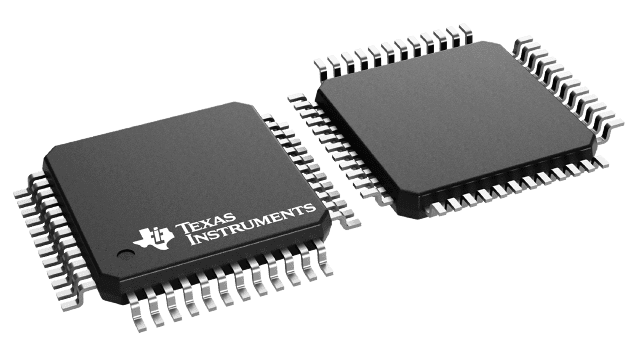

ADS1602IPFBT Texas Instruments - Yeehing Electronics

16-Bit, 2.5MSPS Analog-to-Digital Converter

Pricing (USD)

Quantity	Unit Price
1 — 99	16.472
100 — 249	14.388
250 — 999	11.094
1,000 +	7.94

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Series	ADS1602
Mounting Style	SMD/SMT
Package / Case	TQFP-48
Resolution	16 bit
Number of Channels	1 Channel
Sampling Rate	2.5 MS/s
Input Type	Differential
Interface Type	3-Wire
Architecture	Sigma-Delta
Reference Type	External, Internal
Analog Supply Voltage	4.75 V to 5.25 V
Digital Supply Voltage	2.7 V to 5.25 V
SNR - Signal to Noise Ratio	91 dB
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Features	Internal Reference
Height	1 mm
Length	7 mm
Number of Converters	1 Converter
Power Consumption	530 mW
Width	7 mm
Brand	Texas Instruments
Development Kit	ADS1602EVM
DNL - Differential Nonlinearity	0.25 LSB
INL - Integral Nonlinearity	0.75 LSB
Moisture Sensitive	Yes
Operating Supply Voltage	2.7 V to 3.3 V, 4.75 V to 5.25 V
Pd - Power Dissipation	610 mW
Product Type	ADCs - Analog to Digital Converters
Reference Voltage	3 V
SINAD - Signal to Noise and Distortion Ratio	91 dB
Factory Pack Quantity	250
Subcategory	Data Converter ICs
Unit Weight	0.004847 oz

For more information, please refer to datasheet

Documents

ADS1602IPFBT Datasheet

More Information

The ADS1602 is a high-speed, high-precision, delta-sigma (ΔΣ) analog-to-digital converter (ADC) manufactured on an advanced CMOS process. The ADS1602 oversampling topology reduces clock jitter sensitivity during the sampling of high-frequency, large amplitude signals by a factor of four over that achieved by Nyquist-rate ADCs. Consequently, signal-to-noise ratio (SNR) is particularly improved. Total harmonic distortion (THD) is –101dB, and the spurious-free dynamic range (SFDR) is 103dB.
