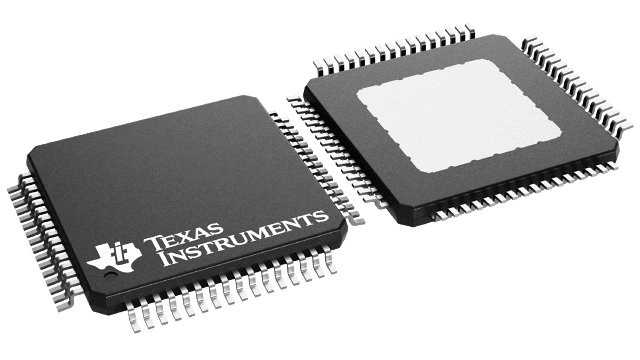

ADS1606IPAPT Texas Instruments - Yeehing Electronics
16 Bit, 5MSPS Single Channel Delta-Sigma ADC Single with FIFO
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 41.432 |
| 100 — 249 | 36.829 |
| 250 — 999 | 30.275 |
| 1,000 + | 18.96 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS1606 |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-64 |
| Resolution | 16 bit |
| Number of Channels | 1 Channel |
| Sampling Rate | 5 MS/s |
| Input Type | Differential |
| Interface Type | Parallel |
| Architecture | Sigma-Delta |
| Reference Type | External, Internal |
| Analog Supply Voltage | 4.75 V to 5.25 V |
| Digital Supply Voltage | 2.7 V to 5.25 V |
| SNR - Signal to Noise Ratio | 88 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | Internal Reference |
| Height | 1 mm |
| Length | 10 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 560 mW |
| Width | 10 mm |
| Brand | Texas Instruments |
| Development Kit | ADS1606EVM |
| DNL - Differential Nonlinearity | 0.25 LSB |
| INL - Integral Nonlinearity | +/- 0.75 LSB |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 2.7 V to 3.3 V, 4.75 V to 5.25 V |
| Pd - Power Dissipation | 710 mW |
| Product Type | ADCs - Analog to Digital Converters |
| SINAD - Signal to Noise and Distortion Ratio | 84 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.009108 oz |
For more information, please refer to datasheet
Documents
| ADS1606IPAPT Datasheet |
More Information
The ADS1605 and ADS1606 are high-speed, high-precision, delta-sigma analog-to-digital converter (ADCs) with 16-bit resolution. The data rate is 5 mega-samples per second (MSPS), the bandwidth (3dB) is 2.45MHz, and passband ripple is less than ±0.0025dB (to 2.2MHz). Both devices offer outstanding performance at these speeds with a signal-to-noise ratio up to 88dB, total harmonic distortion down to 99dB, and a spurious-free dynamic range up to 101dB. For even higher-speed operation, the data rate an be doubled to 10MSPS in 2X mode. The ADS1606 includes an adjustable first-in first-out buffer (FIFO) for the output data.
