Texas Instruments
ADS1625IPAPT
ADS1625IPAPT
Regular price
$12.88 USD
Regular price
Sale price
$12.88 USD
Unit price
per
Couldn't load pickup availability

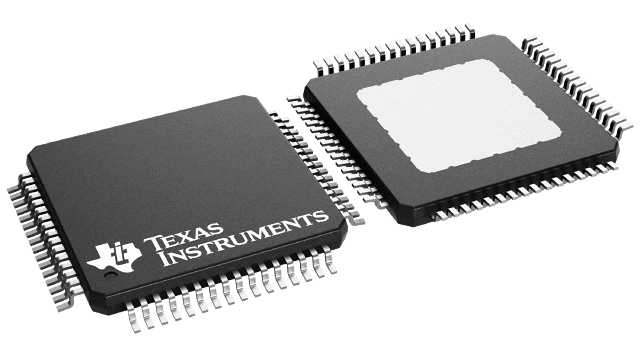

ADS1625IPAPT Texas Instruments - Yeehing Electronics
18 Bit, 1.25MSPS Single Channel Delta-Sigma ADC
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 30.556 |
| 100 — 249 | 26.69 |
| 250 — 999 | 20.579 |
| 1,000 + | 12.88 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS1625 |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-64 |
| Resolution | 18 bit |
| Number of Channels | 1 Channel |
| Sampling Rate | 1.25 MS/s |
| Input Type | Differential |
| Interface Type | Parallel |
| Architecture | Sigma-Delta |
| Reference Type | External, Internal |
| Analog Supply Voltage | 4.75 V to 5.25 V |
| Digital Supply Voltage | 2.7 V to 5.25 V |
| SNR - Signal to Noise Ratio | 93 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | Internal Reference |
| Height | 1 mm |
| Length | 10 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 520 mW |
| Width | 10 mm |
| Brand | Texas Instruments |
| Development Kit | ADS1625EVM |
| DNL - Differential Nonlinearity | +/- 0.5 LSB |
| INL - Integral Nonlinearity | 3.5 LSB |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 2.7 V to 3.3 V, 4.75 V to 5.25 V |
| Pd - Power Dissipation | 645 mW |
| Product Type | ADCs - Analog to Digital Converters |
| SINAD - Signal to Noise and Distortion Ratio | 93 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.009108 oz |
For more information, please refer to datasheet
Documents
| ADS1625IPAPT Datasheet |
More Information
The ADS1625 and ADS1626 are high-speed, high-precision, delta-sigma analog-to-digital converters (ADCs) with 18-bit resolution. The data rate is 1.25 mega samples per second (MSPS), the bandwidth (-3dB) is 615kHz, and passband ripple is less than ±0.0025dB (to 550kHz). Both devices offer the same outstanding performance at these speeds with a signal-to-noise ratio up to 93dB, total harmonic distortion down to -101dB, and a spurious-free dynamic range up to 103dB. The ADS1626 includes an adjustable first-in, first-out buffer (FIFO) for the output data.
