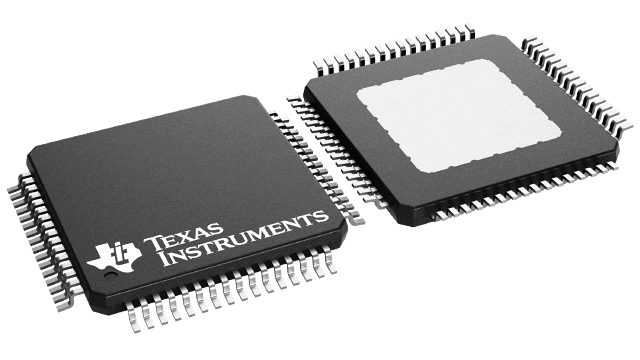

ADS1626IPAPT


YeeHing #: Y004-ADS1626IPAPT
Inventory: 3800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

ADS1626IPAPT Texas Instruments - Yeehing Electronics

18 Bit, 1.25MSPS Single Channel Delta-Sigma ADC Single with an adjustable FIFO

Pricing (USD)

Quantity Unit Price
1 — 99 30.363
100 — 249 26.989
250 — 999 22.187
1,000 + 13.89

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Minimum Operating Temperature -40
Maximum Operating Temperature 105
Factory Pack Quantity 250
Package | Pins HTQFP (PAP) | 64

For more information, please refer to datasheet

Documents

ADS1626IPAPT Datasheet

More Information

The ADS1625 and ADS1626 are high-speed, high-precision, delta-sigma analog-to-digital converters (ADCs) with 18-bit resolution. The data rate is 1.25 mega samples per second (MSPS), the bandwidth (-3dB) is 615kHz, and passband ripple is less than ±0.0025dB (to 550kHz). Both devices offer the same outstanding performance at these speeds with a signal-to-noise ratio up to 93dB, total harmonic distortion down to -101dB, and a spurious-free dynamic range up to 103dB. The ADS1626 includes an adjustable first-in, first-out buffer (FIFO) for the output data.
