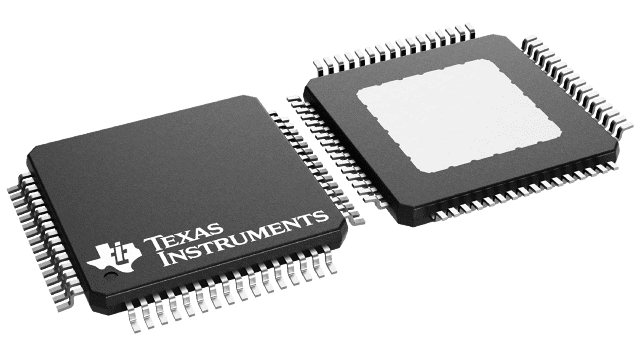

ADS2806Y/250 Texas Instruments - Yeehing Electronics
Dual-Channel, 12-Bit, 32-MSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 35.395 |
| 100 — 249 | 31.462 |
| 250 — 999 | 25.864 |
| 1,000 + | 16.19 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS2806 |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-64 |
| Resolution | 12 bit |
| Number of Channels | 2 Channel |
| Sampling Rate | 32 MS/s |
| Input Type | Differential |
| Interface Type | Parallel |
| Architecture | Pipeline |
| Reference Type | External, Internal |
| Analog Supply Voltage | 4.75 V to 5.25 V |
| Digital Supply Voltage | 3 V to 5 V |
| SNR - Signal to Noise Ratio | 67 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | Low Power |
| Height | 1 mm |
| Length | 10 mm |
| Number of Converters | 2 Converter |
| Output Type | CMOS |
| Power Consumption | 430 mW |
| Width | 10 mm |
| Brand | Texas Instruments |
| Development Kit | ADS2806-EVM |
| DNL - Differential Nonlinearity | +/- 1 LSB |
| ENOB - Effective Number of Bits | 10.7 Bit |
| INL - Integral Nonlinearity | +/- 4 LSB |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 5 V |
| Pd - Power Dissipation | 475 mW |
| Product Type | ADCs - Analog to Digital Converters |
| SFDR - Spurious Free Dynamic Range | 73 dB |
| SINAD - Signal to Noise and Distortion Ratio | 69 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.009108 oz |
For more information, please refer to datasheet
Documents
| ADS2806Y/250 Datasheet |
More Information
The ADS2806 is a dual, high-speed, high dynamic range, 12-bit pipelined Analog-to-Digital Converter (ADC). This converter includes a high-bandwidth track-and-hold that gives excellent spurious performance up to and beyond the Nyquist rate. The differential nature of this track-and-hold and ADC circuitry minimizes even-order harmonics and gives excellent common-mode noise immunity. The track-and-hold can also be operated single-ended.
