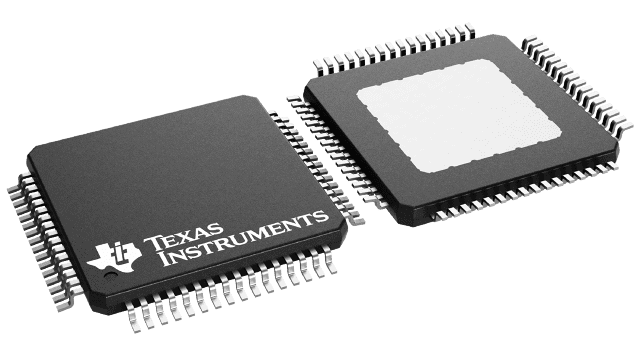

ADS2807Y/250 Texas Instruments - Yeehing Electronics

Dual-Channel, 12-Bit, 50-MSPS Analog-to-Digital Converter (ADC)

Pricing (USD)

Quantity	Unit Price
1 — 99	36.998
100 — 249	32.888
250 — 999	27.035
1,000 +	16.93

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Series	ADS2807
Mounting Style	SMD/SMT
Package / Case	HTQFP-64
Resolution	12 bit
Number of Channels	2 Channel
Sampling Rate	50 MS/s
Input Type	Differential
Interface Type	Parallel
Architecture	Pipeline
Reference Type	External, Internal
Analog Supply Voltage	4.75 V to 5.25 V
Digital Supply Voltage	3 V to 5 V
SNR - Signal to Noise Ratio	66 dB
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Features	High Performance
Height	1 mm
Length	10 mm
Number of Converters	2 Converter
Output Type	CMOS
Power Consumption	720 mW
Width	10 mm
Brand	Texas Instruments
Development Kit	ADS2807-EVM
DNL - Differential Nonlinearity	+/- 1 LSB
ENOB - Effective Number of Bits	10.5 Bit
INL - Integral Nonlinearity	+/- 5 LSB
Moisture Sensitive	Yes
Operating Supply Voltage	4.75 V to 5.25 V
Pd - Power Dissipation	760 mW
Product Type	ADCs - Analog to Digital Converters
SFDR - Spurious Free Dynamic Range	70 dB
SINAD - Signal to Noise and Distortion Ratio	68 dB
Factory Pack Quantity	250
Subcategory	Data Converter ICs
Unit Weight	0.009108 oz

For more information, please refer to datasheet

Documents

ADS2807Y/250 Datasheet

More Information

The ADS2807 is a dual, high-speed, high dynamic range, 12-bit pipelined Analog-to-Digital Converter (ADC). This converter includes a high-bandwidth track-and-hold that gives excellent spurious performance up to and beyond the Nyquist rate. The differential nature of this track-and-hold and ADC circuitry minimizes even-order harmonics and gives excellent common-mode noise immunity. The track-and-hold can also be operated single-ended.
