Texas Instruments
ADS4449IZCR
ADS4449IZCR
Regular price
$96.20 USD
Regular price
Sale price
$96.20 USD
Unit price
per
Couldn't load pickup availability

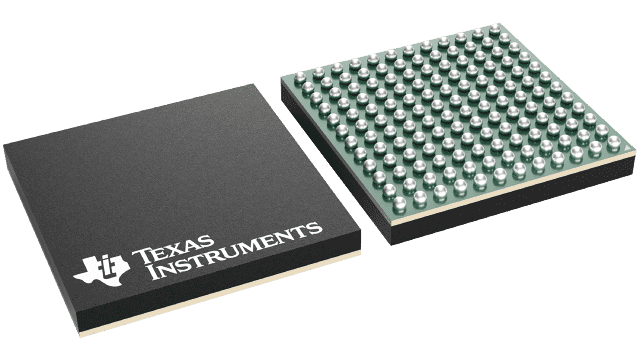

ADS4449IZCR Texas Instruments - Yeehing Electronics
Quad-Channel, 14-Bit, 250-MSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 159.411 |
| 100 — 249 | 144.294 |
| 250 — 999 | 140.171 |
| 1,000 + | 96.20 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS4449 |
| Mounting Style | SMD/SMT |
| Package / Case | NFBGA-144 |
| Resolution | 14 bit |
| Number of Channels | 4 Channel |
| Sampling Rate | 250 MS/s |
| Interface Type | Serial |
| Architecture | Pipeline |
| Analog Supply Voltage | 3.15 V to 3.45 V |
| Digital Supply Voltage | 1.7 V to 2 V |
| SNR - Signal to Noise Ratio | 71.1 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tray |
| Features | High Performance |
| Number of Converters | 4 Converter |
| Output Type | DDR, LVDS |
| Power Consumption | 1.47 W |
| Brand | Texas Instruments |
| Development Kit | ADS4449EVM |
| DNL - Differential Nonlinearity | +/- 0.95 LSB |
| ENOB - Effective Number of Bits | 11.5 Bit |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3.3 V |
| Pd - Power Dissipation | 1.6 W |
| Product Type | ADCs - Analog to Digital Converters |
| SFDR - Spurious Free Dynamic Range | 87 dB |
| SINAD - Signal to Noise and Distortion Ratio | 70.9 dB |
| Factory Pack Quantity | 184 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.010508 oz |
For more information, please refer to datasheet
Documents
| ADS4449IZCR Datasheet |
More Information
The ADS4449 is a high-linearity, quad-channel, 14-bit, 250-MSPS, analog-to-digital converter (ADC). Designed for low power consumption and high spurious-free dynamic range (SFDR), the device has low-noise performance and outstanding SFDR over a large input frequency range.
