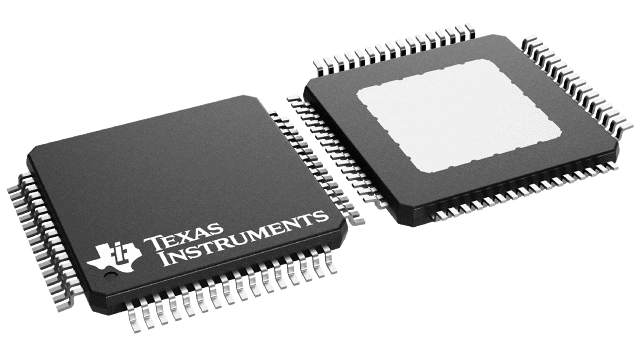

ADS5240IPAPT Texas Instruments - Yeehing Electronics

Quad-Channel, 12-Bit, 40-MSPS Analog-to-Digital Converter (ADC)

Pricing (USD)

Quantity	Unit Price
1 — 99	60.409
100 — 249	53.697
250 — 999	44.142
1,000 +	27.64

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Series	ADS5240
Mounting Style	SMD/SMT
Package / Case	HTQFP-64
Resolution	12 bit
Number of Channels	4 Channel
Sampling Rate	40 MS/s
Input Type	Differential
Interface Type	Serial
Architecture	Pipeline
Reference Type	External, Internal
Analog Supply Voltage	3.3 V
Digital Supply Voltage	3 V to 3.6 V
SNR - Signal to Noise Ratio	70.5 dB
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Features	Low Power
Height	1 mm
Length	10 mm
Number of Converters	4 Converter
Output Type	LVDS
Power Consumption	607 mW
Width	10 mm
Brand	Texas Instruments
Development Kit	ADS5240EVM
DNL - Differential Nonlinearity	+/- 0.9 LSB
ENOB - Effective Number of Bits	11.3 Bit
INL - Integral Nonlinearity	+/- 2 LSB
Moisture Sensitive	Yes
Operating Supply Voltage	3.3 V
Pd - Power Dissipation	650 mW
Product Type	ADCs - Analog to Digital Converters
SFDR - Spurious Free Dynamic Range	85 dB
SINAD - Signal to Noise and Distortion Ratio	70 dB
Factory Pack Quantity	250
Subcategory	Data Converter ICs
Unit Weight	0.009108 oz

For more information, please refer to datasheet

Documents

ADS5240IPAPT Datasheet

More Information

The ADS5240 is a high-performance, 40MSPS, 4-channel analog-to-digital converter (ADC). Internal references are provided, simplifying system design requirements. Low power consumption allows for the highest of system integration densities. Serial LVDS (low-voltage differential signaling) outputs reduce the number of interface lines and package size.
