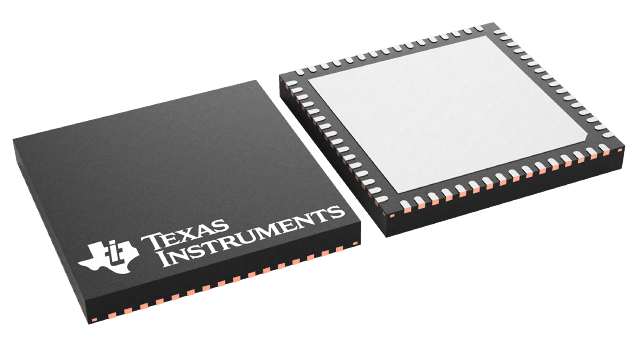

ADS5263IRGCT Texas Instruments - Yeehing Electronics

Quad-Channel, 16-Bit, 100-MSPS Analog-to-Digital Converter (ADC)

Pricing (USD)

Quantity	Unit Price
1 — 99	267.881
100 — 249	242.479
250 — 999	235.551
1,000 +	161.65

The above prices are for reference only.

Specifications

Manufacturer	Microchip
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	VTLA-124
Resolution	12 bit
Number of Channels	1 Channel
Sampling Rate	200 MS/s
Input Type	Differential
Interface Type	Parallel
Architecture	Pipeline
Reference Type	Internal
Analog Supply Voltage	1.2 V, 1.8 V
Digital Supply Voltage	1.2 V, 1.8 V
SNR - Signal to Noise Ratio	66.5 dB
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Tube
Features	Digital down-converter, decimation filters, noise-shaping requantizer
Number of Converters	1 Converter
Output Type	CMOS, DDR LVDS
Type	S/H ADC
Brand	Microchip Technology
Shutdown	Shutdown
DNL - Differential Nonlinearity	0.1 LSB
ENOB - Effective Number of Bits	10.8 bit
FPBW - Full Power Bandwidth	650 MHz
INL - Integral Nonlinearity	0.375 LSB
Pd - Power Dissipation	338 mW
Product Type	ADCs - Analog to Digital Converters
Reference Voltage	800 mV
SFDR - Spurious Free Dynamic Range	81 dB
Factory Pack Quantity	40
Subcategory	Data Converter ICs
THD - Total Harmonic Distortion	81 dB
Unit Weight	0.011993 oz

For more information, please refer to datasheet

Documents

ADS5263IRGCT Datasheet

More Information

Using CMOS process technology and innovative circuit techniques, the ADS5263 is designed to operate at low power and give very high SNR performance with a 4-Vpp full-scale input. Using a low-noise 16-bit front-end stage followed by a 14-bit ADC, the device gives 85-dBFS SNR up to 10 MHz and better than 80-dBFS SNR up to 30 MHz.
