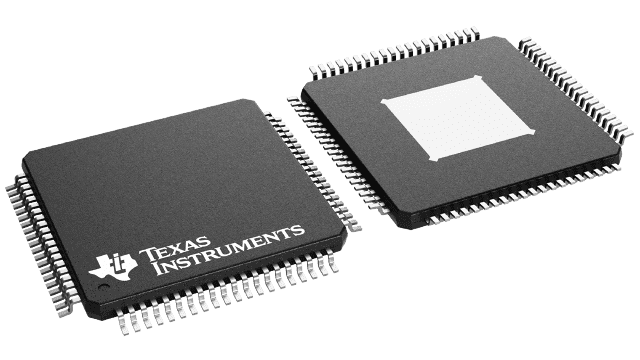

ADS5272IPFPT Texas Instruments - Yeehing Electronics

Eight-Channel, 12-Bit, 65-MSPS Analog-to-Digital Converter (ADC)

Pricing (USD)

Quantity	Unit Price
1 — 99	110.117
100 — 249	106.806
250 — 999	88.922
1,000 +	57.96

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Series	ADS5272
Mounting Style	SMD/SMT
Package / Case	HTQFP-80
Resolution	12 bit
Number of Channels	8 Channel
Sampling Rate	65 MS/s
Input Type	Differential
Interface Type	Serial
Architecture	Pipeline
Reference Type	External, Internal
Analog Supply Voltage	3.3 V
Digital Supply Voltage	3 V to 3.6 V
SNR - Signal to Noise Ratio	71.2 dB
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Features	Low Power
Height	1 mm
Length	12 mm
Number of Converters	8 Converter
Output Type	LVDS
Power Consumption	983 mW
Width	12 mm
Brand	Texas Instruments
Development Kit	ADS5272EVM
DNL - Differential Nonlinearity	+/- 0.31 LSB
ENOB - Effective Number of Bits	11.5 Bit
INL - Integral Nonlinearity	2.5 LSB
Moisture Sensitive	Yes
Operating Supply Voltage	3.3 V
Pd - Power Dissipation	1072 mW
Product Type	ADCs - Analog to Digital Converters
SFDR - Spurious Free Dynamic Range	85 dB
SINAD - Signal to Noise and Distortion Ratio	71 dB
Factory Pack Quantity	250
Subcategory	Data Converter ICs
Unit Weight	0.012984 oz

For more information, please refer to datasheet

Documents

ADS5272IPFPT Datasheet

More Information

The ADS5272 is a high-performance, 65MSPS, 8-channel analog-to-digital converter (ADC). Internal references are provided, simplifying system design requirements. Low power consumption allows for the highest of system integration densities. Serial LVDS (low-voltage differential signaling) outputs reduce the number of interface lines and package size.
