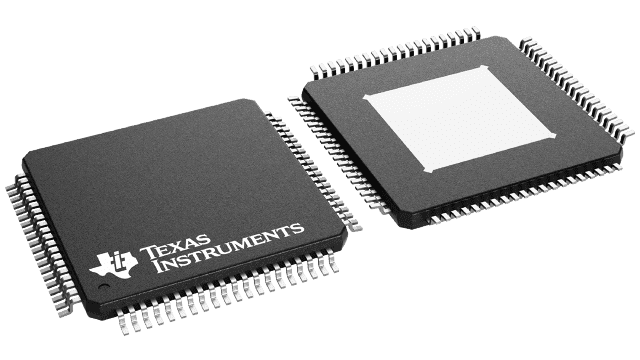

ADS5281IPFP Texas Instruments - Yeehing Electronics
Eight-Channel, 12-Bit, 50-MSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 98.198 |
| 100 — 249 | 87.288 |
| 250 — 999 | 71.755 |
| 1,000 + | 44.93 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS5281 |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-80 |
| Resolution | 12 bit |
| Number of Channels | 8 Channel |
| Sampling Rate | 65 MS/s |
| Input Type | Differential |
| Interface Type | Serial |
| Architecture | Pipeline |
| Reference Type | External, Internal |
| Analog Supply Voltage | 3.3 V |
| Digital Supply Voltage | 1.7 V to 1.9 V |
| SNR - Signal to Noise Ratio | 70 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | Low Power |
| Height | 1 mm |
| Length | 12 mm |
| Number of Converters | 8 Converter |
| Output Type | LVDS |
| Power Consumption | 512 mW |
| Width | 12 mm |
| Brand | Texas Instruments |
| DNL - Differential Nonlinearity | +/- 0.75 LSB |
| ENOB - Effective Number of Bits | 11.3 Bit |
| INL - Integral Nonlinearity | +/- 1.5 LSB |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 1.7 V to 1.9 V, 3 V to 3.6 V |
| Pd - Power Dissipation | 649.5 mW |
| Product Type | ADCs - Analog to Digital Converters |
| SFDR - Spurious Free Dynamic Range | 85 dB |
| SINAD - Signal to Noise and Distortion Ratio | 69.7 dB |
| Factory Pack Quantity | 1000 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.012984 oz |
For more information, please refer to datasheet
Documents
| ADS5281IPFP Datasheet |
More Information
The ADS528x is a family of high-performance, low-power, octal channel analog-to-digital converters (ADCs). Available in either a 9mm × 9mm QFN package or an HTQFP-80 package, with serialized low-voltage differential signaling (LVDS) outputs and a wide variety of programmable features, the ADS528x is highly customizable for a diversity of applications and offers an unprecedented level of system integration. An application note, XAPP774 (available at www.xilinx.com), describes how to interface the serial LVDS outputs of TI&3146;s ADCs to Xilinx field-programmable gate arrays (FPGAs). The ADS528x family is specified over the industrial temperature range of –40°C to +85°C.
