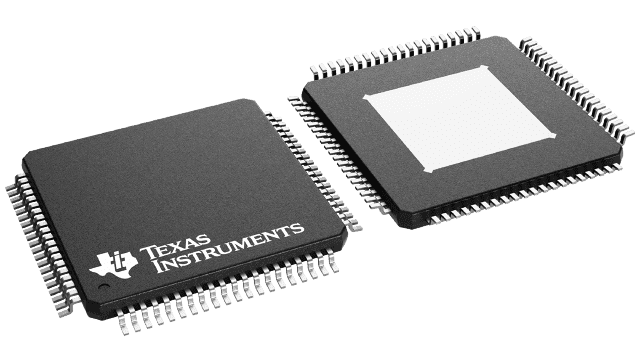

Eight-Channel, 14-Bit, 80-MSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 99.218 |
| 100 — 249 | 96.234 |
| 250 — 999 | 80.12 |
| 1,000 + | 52.22 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS5294 |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-80 |
| Resolution | 14 bit |
| Number of Channels | 8 Channel |
| Sampling Rate | 80 MS/s |
| Interface Type | 1-Wire, I2C |
| Architecture | Pipeline |
| SNR - Signal to Noise Ratio | 75.5 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tray |
| Features | Low Power |
| Output Type | LVDS |
| Power Consumption | 464 mW |
| Brand | Texas Instruments |
| DNL - Differential Nonlinearity | +/- 1.7 LSB |
| ENOB - Effective Number of Bits | 12.2 Bit |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 1.8 V |
| Product Type | ADCs - Analog to Digital Converters |
| Reference Voltage | 1.8 V |
| SFDR - Spurious Free Dynamic Range | 84 dB |
| SINAD - Signal to Noise and Distortion Ratio | 74.8 dB |
| Factory Pack Quantity | 96 |
| Subcategory | Data Converter ICs |
| Supply Voltage - Max | 1.9 V |
| Supply Voltage - Min | 1.7 V |
| Unit Weight | 0.013355 oz |
For more information, please refer to datasheet
Documents
| ADS5294IPFP Datasheet |
More Information
The ADS5294 is a low-power 80-MSPS 8-Channel ADC that uses CMOS process technology and innovative circuit techniques. Low power consumption, high SNR, low SFDR, and consistent overload recovery allow users to design high-performance systems.
