Texas Instruments
ADS5295PFP
ADS5295PFP
Regular price
$48.83 USD
Regular price
Sale price
$48.83 USD
Unit price
per
Couldn't load pickup availability

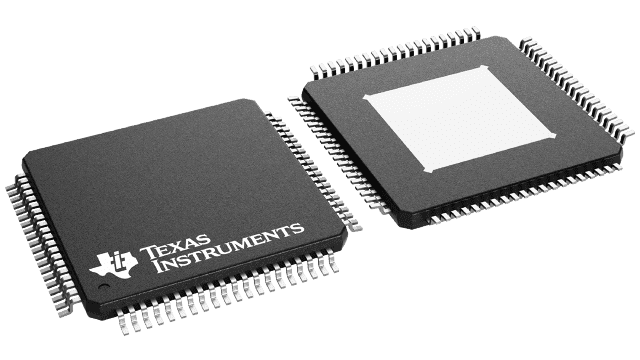

ADS5295PFP Texas Instruments - Yeehing Electronics
Octal Channel 12-Bit, 100MSPS High-SNR and Low-Power ADC
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 92.781 |
| 100 — 249 | 89.99 |
| 250 — 999 | 74.922 |
| 1,000 + | 48.83 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS5295 |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-80 |
| Resolution | 12 bit |
| Number of Channels | 8 Channel |
| Sampling Rate | 100 MS/s |
| Interface Type | Serial |
| Architecture | Pipeline |
| Analog Supply Voltage | 1.8 V |
| Digital Supply Voltage | 1.8 V |
| SNR - Signal to Noise Ratio | 70.6 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tube |
| Features | High Performance |
| Number of Converters | 1 Converter |
| Output Type | LVDS |
| Power Consumption | 640 mW |
| Brand | Texas Instruments |
| Development Kit | ADS5295EVM |
| DNL - Differential Nonlinearity | +/- 0.82 LSB |
| ENOB - Effective Number of Bits | 11.4 Bit |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 1.7 V to 1.9 V |
| Product Type | ADCs - Analog to Digital Converters |
| SFDR - Spurious Free Dynamic Range | 86 dB |
| SINAD - Signal to Noise and Distortion Ratio | 70.4 dB |
| Factory Pack Quantity | 96 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.013355 oz |
For more information, please refer to datasheet
Documents
| ADS5295PFP Datasheet |
More Information
The ADS5295 is a low-power, 12-bit, 100-MSPS, 8-channel analog-to-digital converter (ADC). Low power consumption and integration of multiple channels in a compact package make the device attractive for very high channel count data acquisition systems.
