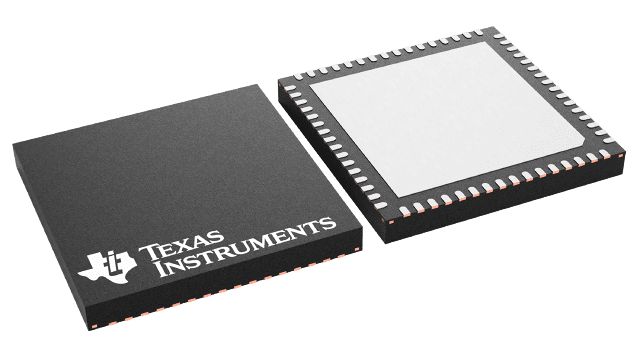

ADS5296ARGCT Texas Instruments - Yeehing Electronics
10-Bit, 200-MSPS, 4 or 8-Channel / 12-Bit, 80-MSPS, 8-Channel ADC
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 76.044 |
100 — 249 | 73.757 |
250 — 999 | 61.407 |
1,000 + | 40.02 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
ADS5296ARGCT Datasheet |
More Information
The ADS5296A is a low-power, 12-bit, 8-channel, analog-to-digital converter (ADC) with sample rates up to 80 MSPS. However, the device can also be configured to operate as a 4-channel ADC running at 2x the sample rate by interleaving data from two ADC channels. In interleaving mode, the device accepts a double frequency input clock. Each ADC in a pair converts a common analog input signal at alternate rising edges of the 2x input clock. The device can either be configured as a 10-bit, 4-channel ADC with sample rates up to 200 MSPS or as a 12-bit, 4-channel ADC with sample rates up to 160 MSPS.
