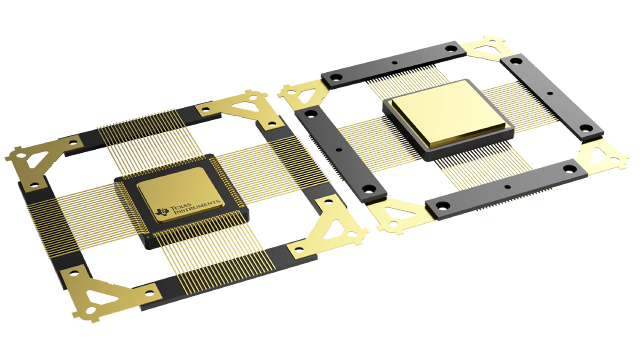

ADS5400HFS/EM Texas Instruments - Yeehing Electronics

QMLV, 50-krad, ceramic, 12-bit, single-channel, 1-GSPS ADC

Pricing (USD)

Quantity	Unit Price
1 — 99	4232.189
100 — 249	4005.464
250 — 999	3778.74
1,000 +	2962.53

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
Shipping Restrictions
RoHS	N
Series	ADS5400-SP
Package / Case	CFP-100
Digital Supply Voltage	3.135 V to 3.465 V
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Power Consumption	2.2 W
Brand	Texas Instruments
DNL - Differential Nonlinearity	+/- 2.5 LSB
ENOB - Effective Number of Bits	9.3 Bit
Product Type	ADCs - Analog to Digital Converters
SFDR - Spurious Free Dynamic Range	75 dB
Factory Pack Quantity	1
Subcategory	Data Converter ICs

For more information, please refer to datasheet

Documents

ADS5400HFS/EM Datasheet

More Information

The ADS5400 is a 12-bit, 1-GSPS analog-to-digital converter (ADC) that operates from both a 5-V supply and 3.3-V supply, while providing LVDS-compatible digital outputs. The analog input buffer isolates the internal switching of the track and hold from disturbing the signal source. The simple 3-stage pipeline provides extremely low latency for time critical applications. Designed for the conversion of signals up to 2 GHz of input frequency at 1 GSPS, the ADS5400 has outstanding low noise performance and spurious-free dynamic range over a large input frequency range.
