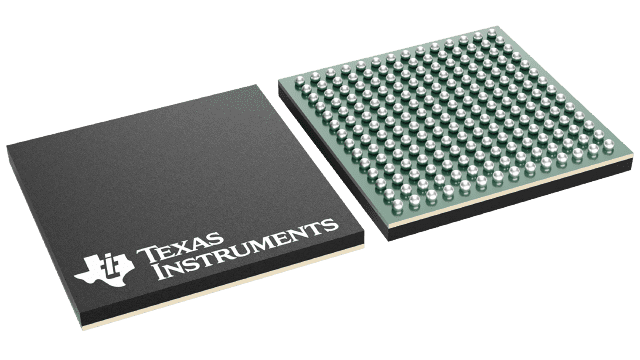

ADS5401IZAY Texas Instruments - Yeehing Electronics
12-Bit, 800-MSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 212.86 |
| 100 — 249 | 192.675 |
| 250 — 999 | 187.17 |
| 1,000 + | 128.45 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS5270 |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-80 |
| Resolution | 12 bit |
| Number of Channels | 8 Channel |
| Sampling Rate | 40 MS/s |
| Input Type | Differential |
| Interface Type | Serial |
| Architecture | Pipeline |
| Reference Type | External, Internal |
| Analog Supply Voltage | 3.3 V |
| Digital Supply Voltage | 3 V to 3.6 V |
| SNR - Signal to Noise Ratio | 70.5 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tray |
| Features | Low Power |
| Height | 1 mm |
| Length | 12 mm |
| Number of Converters | 8 Converter |
| Output Type | LVDS |
| Power Consumption | 907 mW |
| Width | 12 mm |
| Brand | Texas Instruments |
| Development Kit | ADS5270EVM |
| DNL - Differential Nonlinearity | +/- 0.5 LSB |
| ENOB - Effective Number of Bits | 11.3 Bit |
| INL - Integral Nonlinearity | +/- 2 LSB |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3 V to 3.6 V |
| Pd - Power Dissipation | 948 mW |
| Product Type | ADCs - Analog to Digital Converters |
| SFDR - Spurious Free Dynamic Range | 85 dB |
| SINAD - Signal to Noise and Distortion Ratio | 70 dB |
| Factory Pack Quantity | 96 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.012984 oz |
For more information, please refer to datasheet
Documents
| ADS5401IZAY Datasheet |
More Information
The ADS5401 device is a high-linearity single-channel 12-bit, 800-Msps analog-to-digital converter (ADC) easing front-end filter design for wide bandwidth receivers. The analog input buffer isolates the internal switching of the on-chip track-and-hold from disturbing the signal source as well as providing a high-impedance input. Optionally the output data can be decimated by two. Designed for high SFDR, the ADC has low-noise performance and outstanding spurious-free dynamic range over a large input-frequency range. The device is available in a 196-pin BGA package and is specified over the full industrial temperature range (–40°C to 85°C).
