Texas Instruments
ADS5402IZAY
ADS5402IZAY
Couldn't load pickup availability

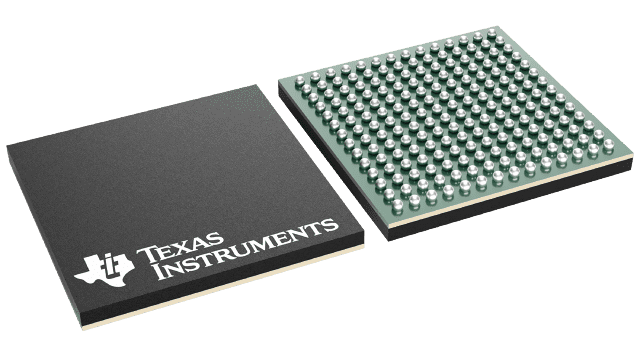

ADS5402IZAY Texas Instruments - Yeehing Electronics
Dual-Channel, 12-Bit, 800-MSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 448.867 |
| 100 — 249 | 406.302 |
| 250 — 999 | 394.693 |
| 1,000 + | 270.87 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS8363 |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-32 |
| Resolution | 16 bit |
| Number of Channels | 4 Channel |
| Sampling Rate | 1 MS/s |
| Input Type | Differential |
| Interface Type | Serial |
| Architecture | SAR |
| Reference Type | External, Internal |
| Analog Supply Voltage | 2.7 V to 5.5 V |
| Digital Supply Voltage | 2.3 V to 5.5 V |
| SNR - Signal to Noise Ratio | 93 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Features | Internal Reference, Simultaneous Sampling |
| Number of Converters | 2 Converter |
| Power Consumption | 47.2 mW |
| Brand | Texas Instruments |
| Development Kit | ADS8363EVM |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 2.7 V to 5.5 V |
| Pd - Power Dissipation | 47.2 mW |
| Product Type | ADCs - Analog to Digital Converters |
| SINAD - Signal to Noise and Distortion Ratio | 92 dB |
| Factory Pack Quantity | 3000 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.002547 oz |
For more information, please refer to datasheet
Documents
| ADS5402IZAY Datasheet |
More Information
The ADS5402 is a high linearity dual channel 12-bit, 800 Msps analog-to-digital converter (ADC) easing front end filter design for wide bandwidth receivers. The analog input buffer isolates the internal switching of the on-chip track-and-hold from disturbing the signal source as well as providing a high-impedance input. Optionally the output data can be decimated by two. Designed for high SFDR, the ADC has low-noise performance and very good spurious-free dynamic range over a large input-frequency range. The device is available in a 196-pin BGA package and is specified over the full industrial temperature range (–40°C to 85°C).
