ADS5407IZAY Texas Instruments - Yeehing Electronics

Dual-Channel, 12-Bit, 500-MSPS Analog-to-Digital Converter (ADC)

Pricing (USD)

Quantity	Unit Price
1 — 99	325.642
100 — 249	294.762
250 — 999	286.341
1,000 +	196.51

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

ADS5407IZAY Datasheet

More Information

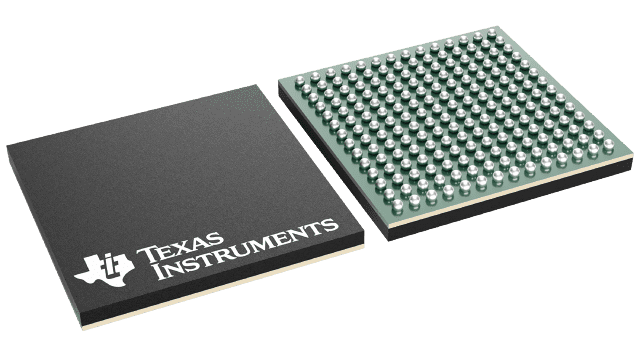

The ADS5407 is a high linearity dual channel 12-bit, 500 MSPS analog-to-digital converter (ADC) easing front end filter design for wide bandwidth receivers. The analog input buffer isolates the internal switching of the on-chip track-and-hold from disturbing the signal source as well as providing a high-impedance input. Optionally the output data can be decimated by two. Designed for high SFDR, the ADC has low-noise performance and outstanding spurious-free dynamic range over a large input-frequency range. The device is available in a 196 pin BGA package and is specified over the full industrial temperature range (–40°C to 85°C).
