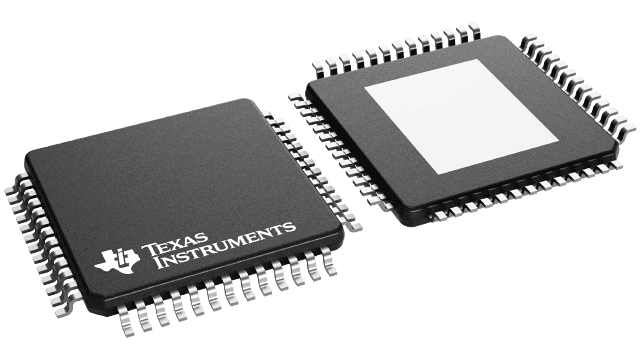

ADS5411IPGP Texas Instruments - Yeehing Electronics
11-Bit, 105-MSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 50.672 |
| 100 — 249 | 45.042 |
| 250 — 999 | 37.027 |
| 1,000 + | 23.18 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS5411 |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-52 |
| Resolution | 11 bit |
| Sampling Rate | 105 MS/s |
| Architecture | Pipeline |
| Analog Supply Voltage | 4.75 V to 5.25 V |
| Digital Supply Voltage | 3 V to 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tray |
| Features | Low Power |
| Power Consumption | 1.9 W |
| Brand | Texas Instruments |
| Development Kit | ADS5411EVM |
| DNL - Differential Nonlinearity | +/- 0.25 LSB |
| ENOB - Effective Number of Bits | 10.7 Bit |
| Moisture Sensitive | Yes |
| Product Type | ADCs - Analog to Digital Converters |
| SFDR - Spurious Free Dynamic Range | 90 dB |
| SINAD - Signal to Noise and Distortion Ratio | 66.3 dB |
| Factory Pack Quantity | 160 |
| Subcategory | Data Converter ICs |
For more information, please refer to datasheet
Documents
| ADS5411IPGP Datasheet |
More Information
The ADS5411 is an 11 bit, 105 MSPS analog-to-digital converter (ADC) that operates from a
