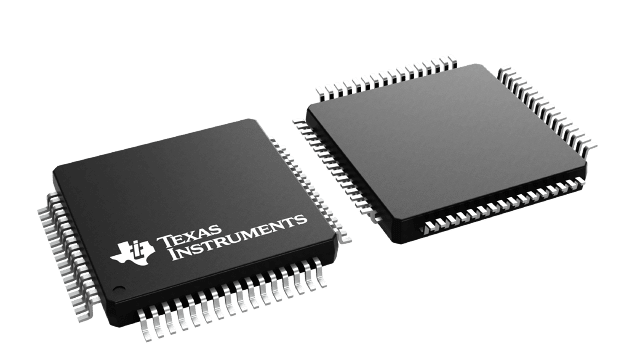

ADS5421Y/T Texas Instruments - Yeehing Electronics
14-Bit, 40-MSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 59.887 |
| 100 — 249 | 53.233 |
| 250 — 999 | 43.761 |
| 1,000 + | 27.40 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS5421 |
| Mounting Style | SMD/SMT |
| Package / Case | LQFP-64 |
| Resolution | 14 bit |
| Number of Channels | 1 Channel |
| Sampling Rate | 40 MS/s |
| Input Type | Differential |
| Interface Type | Parallel |
| Architecture | Pipeline |
| Reference Type | External, Internal |
| Analog Supply Voltage | 4.75 V to 5.25 V |
| Digital Supply Voltage | 3 V to 5 V |
| SNR - Signal to Noise Ratio | 76 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | High Performance |
| Height | 1.4 mm |
| Length | 10 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 900 mW |
| Width | 10 mm |
| Brand | Texas Instruments |
| Development Kit | ADS5421EVM |
| DNL - Differential Nonlinearity | +/- 1 LSB |
| ENOB - Effective Number of Bits | 12.1 Bit |
| INL - Integral Nonlinearity | +/- 2.5 LSB |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 5 V |
| Pd - Power Dissipation | 925 mW |
| Product Type | ADCs - Analog to Digital Converters |
| SFDR - Spurious Free Dynamic Range | 83 dB |
| SINAD - Signal to Noise and Distortion Ratio | 75 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.012088 oz |
For more information, please refer to datasheet
Documents
| ADS5421Y/T Datasheet |
More Information
The ADS5421 is a high-dynamic range 14-bit, 40MHz, pipelined Analog-to-Digital Converter (ADC). It includes a high-bandwidth linear track-and-hold amplifier that gives excellent spurious performance up to and beyond the Nyquist rate. The clock input can accept a low-level differential sine wave or square wave signal down to 0.5VPP, further improving the Signal-to-Noise Ratio (SNR) performance.
