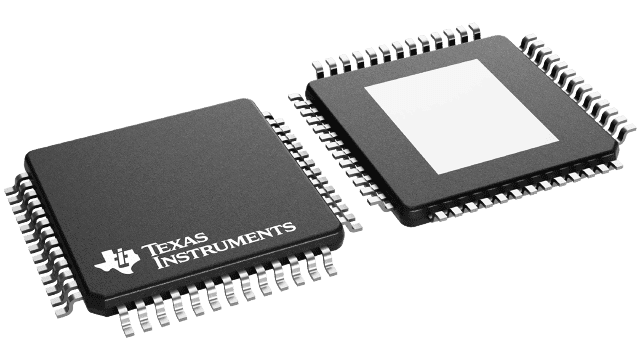

ADS5423IPGP Texas Instruments - Yeehing Electronics
14-Bit, 80-MSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 84.961 |
| 100 — 249 | 75.521 |
| 250 — 999 | 62.083 |
| 1,000 + | 38.87 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS5423 |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-52 |
| Resolution | 14 bit |
| Sampling Rate | 80 MS/s |
| Architecture | Pipeline |
| Analog Supply Voltage | 4.75 V to 5.25 V |
| Digital Supply Voltage | 3 V to 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tray |
| Features | High Performance |
| Power Consumption | 1.85 W |
| Brand | Texas Instruments |
| Development Kit | ADS5423EVM |
| DNL - Differential Nonlinearity | +/- 0.5 LSB |
| ENOB - Effective Number of Bits | 12.2 Bit |
| Moisture Sensitive | Yes |
| Product Type | ADCs - Analog to Digital Converters |
| SFDR - Spurious Free Dynamic Range | 93 dB |
| SINAD - Signal to Noise and Distortion Ratio | 74.2 dB |
| Factory Pack Quantity | 160 |
| Subcategory | Data Converter ICs |
For more information, please refer to datasheet
Documents
| ADS5423IPGP Datasheet |
More Information
The ADS5423 is a 14 bit 80 MSPS analog-to-digital converter (ADC) that operates from a 5 V supply, while providing 3.3 V CMOS compatible digital outputs. The ADS5423 input buffer isolates the internal switching of the on-chip Track and Hold (T&H) from disturbing the signal source. An internal reference generator is also provided to further simplify the system design. The ADS5423 has outstanding low noise and linearity, over input frequency. With only a
