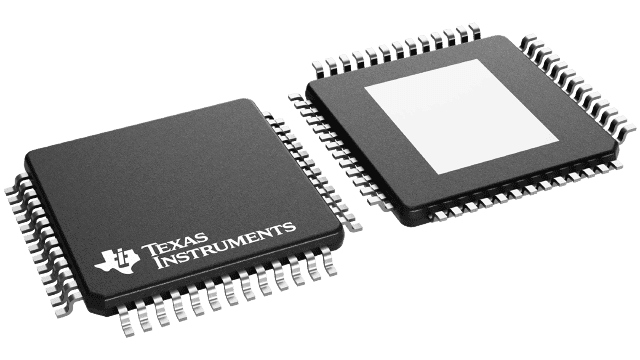

ADS5423IPGPR Texas Instruments - Yeehing Electronics

14-Bit, 80-MSPS Analog-to-Digital Converter (ADC)

Pricing (USD)

Quantity	Unit Price
1 — 99	81.901
100 — 249	72.801
250 — 999	59.847
1,000 +	37.47

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

ADS5423IPGPR Datasheet

More Information

The ADS5423 is a 14 bit 80 MSPS analog-to-digital converter (ADC) that operates from a 5 V supply, while providing 3.3 V CMOS compatible digital outputs. The ADS5423 input buffer isolates the internal switching of the on-chip Track and Hold (T&H) from disturbing the signal source. An internal reference generator is also provided to further simplify the system design. The ADS5423 has outstanding low noise and linearity, over input frequency. With only a
