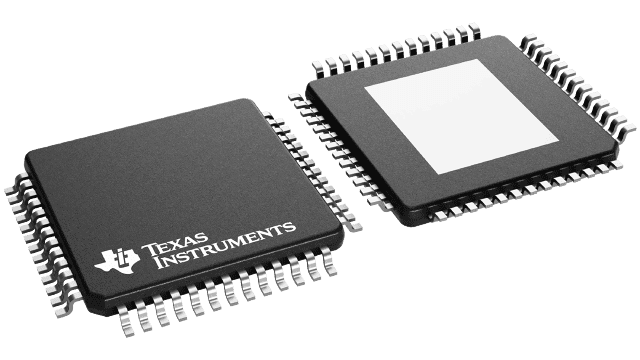

ADS5424IPGP Texas Instruments - Yeehing Electronics

14-Bit, 105-MSPS Analog-to-Digital Converter (ADC)

Pricing (USD)

Quantity	Unit Price
1 — 99	112.579
100 — 249	109.193
250 — 999	90.91
1,000 +	67.72

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Series	ADS5424
Mounting Style	SMD/SMT
Package / Case	HTQFP-52
Resolution	14 bit
Sampling Rate	105 MS/s
Architecture	Pipeline
Analog Supply Voltage	4.75 V to 5.25 V
Digital Supply Voltage	3 V to 3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Tray
Features	High Performance
Power Consumption	1.9 W
Brand	Texas Instruments
Development Kit	ADS5424EVM
DNL - Differential Nonlinearity	+/- 0.5 LSB
ENOB - Effective Number of Bits	12.3 Bit
Moisture Sensitive	Yes
Product Type	ADCs - Analog to Digital Converters
SFDR - Spurious Free Dynamic Range	95 dB
SINAD - Signal to Noise and Distortion Ratio	74 dB
Factory Pack Quantity	160
Subcategory	Data Converter ICs

For more information, please refer to datasheet

Documents

ADS5424IPGP Datasheet

More Information

The ADS5424 is a 14 bit 105 MSPS analog-to-digital converter (ADC) that operates from a 5 V supply, while providing 3.3 V CMOS compatible digital outputs. The ADS5424 input buffer isolates the internal switching of the on-chip Track and Hold (T & H) from disturbing the signal source. An internal reference generator is also provided to further simplify the system design. The ADS5424 has outstanding low noise and linearity, over input frequency. With only a
