Texas Instruments

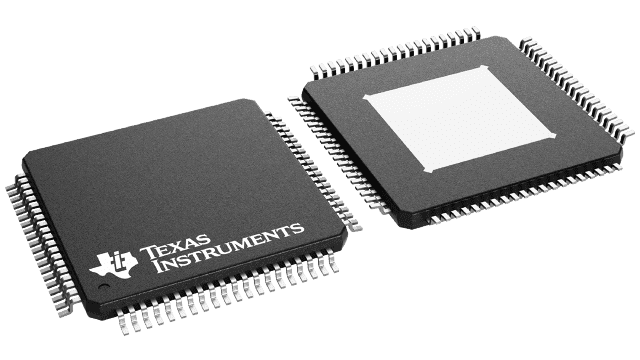

ADS5440IPFP
ADS5440IPFP
Regular price
$48.30 USD
Regular price
Sale price
$48.30 USD
Unit price
per
Couldn't load pickup availability
ADS5440IPFP Texas Instruments - Yeehing Electronics
13-Bit, 210-MSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 91.77 |
| 100 — 249 | 89.01 |
| 250 — 999 | 74.106 |
| 1,000 + | 48.30 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADC3424 |
| Mounting Style | SMD/SMT |
| Package / Case | QFN-56 |
| Interface Type | I2C |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | Low Power |
| Power Consumption | 391 mW |
| Brand | Texas Instruments |
| ENOB - Effective Number of Bits | 11.4 Bit |
| Moisture Sensitive | Yes |
| Product Type | ADCs - Analog to Digital Converters |
| SFDR - Spurious Free Dynamic Range | 93 dB |
| SINAD - Signal to Noise and Distortion Ratio | 70.5 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
For more information, please refer to datasheet
Documents
| ADS5440IPFP Datasheet |
More Information
The ADS5440 is a 13-bit 210 MSPS analog-to-digital converter (ADC) that operates from a 5 V supply, while providing LVDS-compatible digital outputs from a 3.3 V supply. The ADS5440 input buffer isolates the internal switching of the onboard track and hold (T&H) from disturbing the signal source. An internal reference generator is also provided to further simplify the system design. The ADS5440 has outstanding low noise and linearity over input frequency.
