Texas Instruments

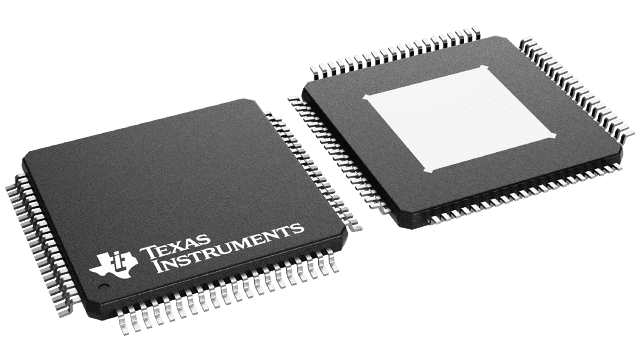

ADS5444IPFP
ADS5444IPFP
Regular price
$54.61 USD
Regular price
Sale price
$54.61 USD
Unit price
per
Couldn't load pickup availability
ADS5444IPFP Texas Instruments - Yeehing Electronics
13-bit 250-MSPS analog-to-digital converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 103.761 |
| 100 — 249 | 100.641 |
| 250 — 999 | 83.789 |
| 1,000 + | 54.61 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS5444 |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-80 |
| Resolution | 13 bit |
| Number of Channels | 1 Channel |
| Sampling Rate | 250 MS/s |
| Input Type | Differential |
| Interface Type | Parallel |
| Architecture | Pipeline |
| Reference Type | Internal |
| Analog Supply Voltage | 4.75 V to 5.25 V |
| Digital Supply Voltage | 3 V to 3.6 V |
| SNR - Signal to Noise Ratio | 69.3 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tray |
| Features | High Performance |
| Height | 1 mm |
| Length | 12 mm |
| Number of Converters | 1 Converter |
| Output Type | LVDS |
| Power Consumption | 2.25 W |
| Width | 12 mm |
| Brand | Texas Instruments |
| Development Kit | ADS5444EVM |
| DNL - Differential Nonlinearity | 1 LSB |
| ENOB - Effective Number of Bits | 11.1 bit |
| INL - Integral Nonlinearity | 2.2 LSB |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 5 V |
| Pd - Power Dissipation | 2280 mW |
| Product Type | ADCs - Analog to Digital Converters |
| SFDR - Spurious Free Dynamic Range | 77 dB |
| SINAD - Signal to Noise and Distortion Ratio | 67.6 dB |
| Factory Pack Quantity | 96 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.012984 oz |
For more information, please refer to datasheet
Documents
| ADS5444IPFP Datasheet |
More Information
The ADS5444 is a 13-bit 250 MSPS analog-to-digital converter (ADC) that operates from a 5 V supply, while providing LVDS-compatible digital outputs from a 3.3 V supply. The ADS5444 input buffer isolates the internal switching of the onboard track and hold (T&H) from disturbing the signal source. An internal reference generator is also provided to further simplify the system design. The ADS5444 has outstanding low noise and linearity over input frequency.
