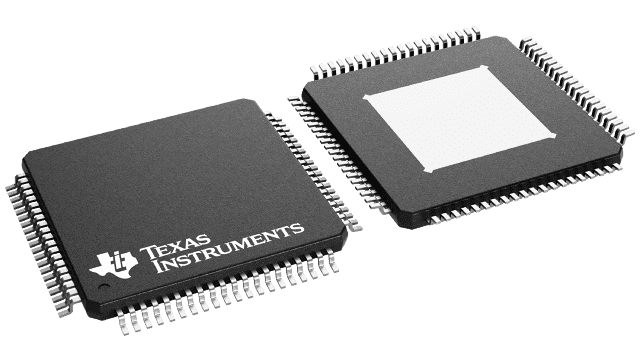

ADS5444MPFPEP Texas Instruments - Yeehing Electronics

13-bit 250-MSPS analog-to-digital converter (ADC) - enhanced product

Pricing (USD)

Quantity	Unit Price
1 — 99	145.007
100 — 249	131.256
250 — 999	127.506
1,000 +	87.50

The above prices are for reference only.

Specifications

Manufacturer	Maxim Integrated
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Series	MAX1110
Mounting Style	SMD/SMT
Package / Case	SSOP-20
Resolution	8 bit
Number of Channels	4 Channel/8 Channel
Sampling Rate	50 kS/s
Input Type	Differential/Single-Ended
Interface Type	SPI
Architecture	SAR
Reference Type	External
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Height	1.78 mm
Length	7.33 mm
Number of Converters	1 Converter
Width	5.38 mm
Brand	Maxim Integrated
DNL - Differential Nonlinearity	+/- 1 LSB
INL - Integral Nonlinearity	+/- 0.5 LSB
Operating Supply Voltage	2.7 V to 5.5 V
Pd - Power Dissipation	640 mW
Product Type	ADCs - Analog to Digital Converters
Factory Pack Quantity	2000
Subcategory	Data Converter ICs
Part # Aliases	MAX1110
Unit Weight	0.016000 oz

For more information, please refer to datasheet

Documents

ADS5444MPFPEP Datasheet

More Information

The ADS5444 is a 13-bit 250-MSPS analog-to-digital converter (ADC) that operates from a 5-V supply, while providing LVDS-compatible digital outputs from a 3.3-V supply. The ADS5444 input buffer isolates the internal switching of the onboard track and hold (T&H) from disturbing the signal source. An internal reference generator is also provided to further simplify the system design. The ADS5444 has outstanding low noise and linearity over input frequency.
