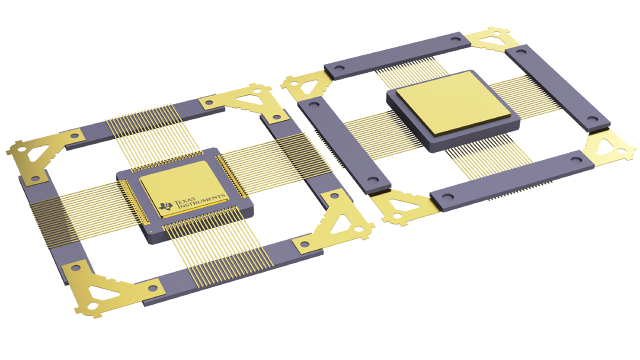

ADS5463HFG/EM Texas Instruments - Yeehing Electronics

Radiation-hardness-assured (RHA), QMLV, 100-krad, ceramic, 12-bit, single, 500-MSPS ADC

Pricing (USD)

Quantity	Unit Price
1 — 99	3203.424
100 — 249	3031.812
250 — 999	2860.2
1,000 +	2242.40

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
Shipping Restrictions
RoHS	N
Series	ADS5463-SP
Digital Supply Voltage	3 V to 3.6 V
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Power Consumption	2.25 W
Brand	Texas Instruments
DNL - Differential Nonlinearity	+/- 1.2 LSB
ENOB - Effective Number of Bits	10.5 Bit
Product Type	ADCs - Analog to Digital Converters
SFDR - Spurious Free Dynamic Range	82 dB
Factory Pack Quantity	1
Subcategory	Data Converter ICs

For more information, please refer to datasheet

Documents

ADS5463HFG/EM Datasheet

More Information

The ADS5463 is a 12-bit, 500-MSPS analog-to-digital converter (ADC) that operates from both a 5-V supply and 3.3-V supply, while providing LVDS-compatible digital outputs from the 3.3-V supply. The ADS5463 input buffer isolates the internal switching of the onboard track and hold (T and H) from disturbing the signal source. An internal reference generator is also provided to simplify the system design further. The ADS5463 has outstanding low noise and linearity over input frequency.
