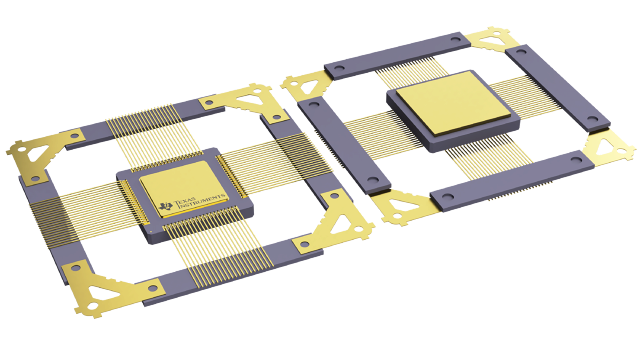

ADS5474MHFGV Texas Instruments - Yeehing Electronics

Radiation-hardness-assured (RHA), QMLV, 100-krad, ceramic, 14-bit, single, 400-MSPS ADC

Pricing (USD)

Quantity	Unit Price
1 — 99	9591.578
100 — 249	9077.744
250 — 999	8563.909
1,000 +	6714.10

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Minimum Operating Temperature	-55
Maximum Operating Temperature	125
Factory Pack Quantity	1
Package | Pins	CFP (HFG) | 84

For more information, please refer to datasheet

Documents

ADS5474MHFGV Datasheet

More Information

The ADS5474 is a 14-bit, 400-MSPS analog-to-digital converter (ADC) that operates from both a 5-V supply and 3.3-V supply while providing LVDS-compatible digital outputs. This ADC is one of a family of 12-, 13-, 14-bit ADCs that operate from 210 MSPS to 500 MSPS. The ADS5474 input buffer isolates the internal switching of the onboard track and hold (T&H) from disturbing the signal source while providing a high-impedance input. An internal reference generator is also provided to simplify the system design.
