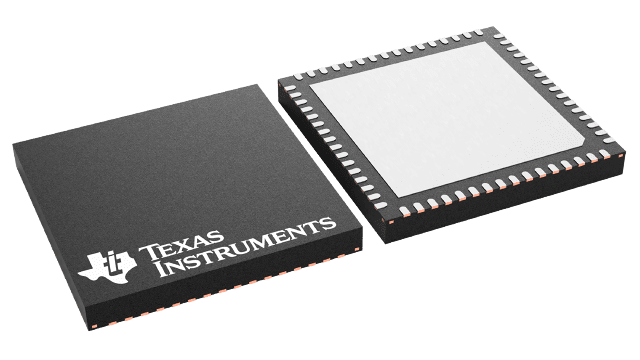

ADS5481IRGCT Texas Instruments - Yeehing Electronics
16-bit, 80-MSPS analog-to-digital converter (ADC) with high SFDR and LVDS outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 93.587 |
| 100 — 249 | 90.772 |
| 250 — 999 | 75.573 |
| 1,000 + | 49.26 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| Shipping Restrictions | |
| RoHS | Y |
| Series | ADS5481 |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-64 |
| Resolution | 16 bit |
| Number of Channels | 1 Channel |
| Sampling Rate | 80 MS/s |
| Input Type | Differential |
| Interface Type | Parallel |
| Architecture | Pipeline |
| Reference Type | External, Internal |
| Analog Supply Voltage | 4.75 V to 5.25 V |
| Digital Supply Voltage | 3 V to 3.6 V |
| SNR - Signal to Noise Ratio | 81 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | High Performance |
| Height | 0.88 mm |
| Length | 9 mm |
| Number of Converters | 1 Converter |
| Output Type | LVDS |
| Power Consumption | 2.1 W |
| Product | Analog to Digital Converters |
| Width | 9 mm |
| Brand | Texas Instruments |
| Development Kit | ADS5481EVM |
| DNL - Differential Nonlinearity | 1 LSB |
| ENOB - Effective Number of Bits | 12.91 Bit |
| INL - Integral Nonlinearity | 10 LSB |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3 V to 3.6 V, 4.75 V to 5.25 V |
| Pd - Power Dissipation | 2350 mW |
| Product Type | ADCs - Analog to Digital Converters |
| SFDR - Spurious Free Dynamic Range | 98 dB |
| SINAD - Signal to Noise and Distortion Ratio | 79.5 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.008021 oz |
For more information, please refer to datasheet
Documents
| ADS5481IRGCT Datasheet |
More Information
The ADS5481/ADS5482/ADS5483 (ADS548x) is a 16-bit family of analog-to-digital converters (ADCs) that operate from both a 5-V supply and 3.3-V supply while providing LVDS-compatible digital outputs. The ADS548x integrated analog input buffer isolates the internal switching of the onboard track and hold (T&H) from disturbing the signal source while providing a high-impedance input. An internal reference generator is also provided to simplify the system design.
