Texas Instruments
ADS5482IRGCT
ADS5482IRGCT
Regular price
$57.14 USD
Regular price
Sale price
$57.14 USD
Unit price
per
Couldn't load pickup availability

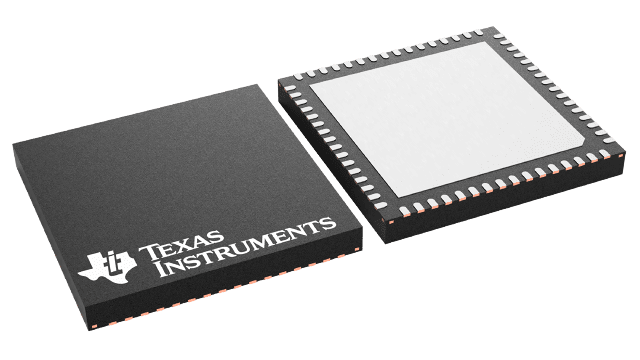

ADS5482IRGCT Texas Instruments - Yeehing Electronics
16-Bit, 105-MSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 108.56 |
| 100 — 249 | 105.295 |
| 250 — 999 | 87.664 |
| 1,000 + | 57.14 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS8556 |
| Mounting Style | SMD/SMT |
| Package / Case | LQFP-64 |
| Resolution | 16 bit |
| Number of Channels | 6 Channel |
| Sampling Rate | 630 kS/s |
| Input Type | Single-Ended |
| Interface Type | Parallel, Serial |
| Architecture | SAR |
| Reference Type | External, Internal |
| Analog Supply Voltage | 4.5 V to 5.5 V |
| Digital Supply Voltage | 2.7 V to 5.5 V |
| SNR - Signal to Noise Ratio | 91.5 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Features | Daisy-Chainable, Oscillator |
| Height | 1.4 mm |
| Length | 10 mm |
| Number of Converters | 6 Converter |
| Power Consumption | 335 mW |
| Width | 10 mm |
| Brand | Texas Instruments |
| Development Kit | ADS8556EVM |
| DNL - Differential Nonlinearity | - 1 /2 LSB |
| INL - Integral Nonlinearity | +/- 4 LSB |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 4.5 V to 5.5 V |
| Pd - Power Dissipation | 298.5 mW |
| Product Type | ADCs - Analog to Digital Converters |
| SINAD - Signal to Noise and Distortion Ratio | 89.5 dB |
| Factory Pack Quantity | 1000 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.012088 oz |
For more information, please refer to datasheet
Documents
| ADS5482IRGCT Datasheet |
More Information
The ADS5481/ADS5482/ADS5483 (ADS548x) is a 16-bit family of analog-to-digital converters (ADCs) that operate from both a 5-V supply and 3.3-V supply while providing LVDS-compatible digital outputs. The ADS548x integrated analog input buffer isolates the internal switching of the onboard track and hold (T&H) from disturbing the signal source while providing a high-impedance input. An internal reference generator is also provided to simplify the system design.
