Texas Instruments

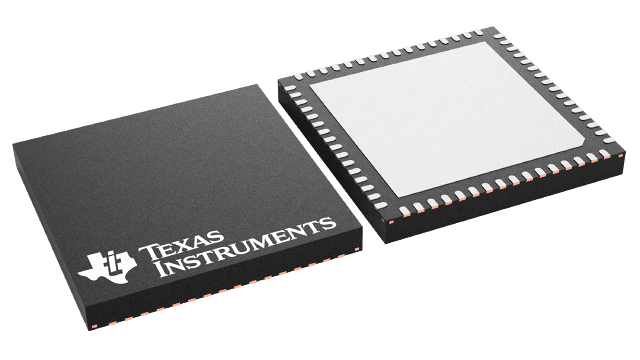

ADS5483IRGCT
ADS5483IRGCT
Regular price
$68.21 USD
Regular price
Sale price
$68.21 USD
Unit price
per
Couldn't load pickup availability
ADS5483IRGCT Texas Instruments - Yeehing Electronics
16-Bit, 135-MSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 129.597 |
| 100 — 249 | 125.699 |
| 250 — 999 | 104.652 |
| 1,000 + | 68.21 |
The above prices are for reference only.
Specifications
| Manufacturer | Analog Devices Inc. |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | AD7858 |
| Mounting Style | SMD/SMT |
| Package / Case | SSOP-24 |
| Resolution | 12 bit |
| Number of Channels | 8 Channel |
| Sampling Rate | 200 kS/s |
| Input Type | Pseudo-Differential/Single-Ended |
| Interface Type | 3-Wire, I2C, SPI |
| Architecture | SAR |
| Reference Type | External, Internal |
| SNR - Signal to Noise Ratio | 71 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Height | 1.75 mm |
| Input Voltage | 3 V/5 V |
| Length | 8.2 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 25 mW |
| Type | S/H ADC |
| Width | 5.3 mm |
| Brand | Analog Devices |
| DNL - Differential Nonlinearity | +/- 1 LSB |
| Gain Error | +/- 4 LSB |
| INL - Integral Nonlinearity | +/- 1 LSB |
| Number of ADC Inputs | 8 Input, 4 Input |
| Operating Supply Voltage | 5 V |
| Pd - Power Dissipation | 33 mW |
| Product Type | ADCs - Analog to Digital Converters |
| Sample and Hold | Yes |
| Factory Pack Quantity | 1500 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.059966 oz |
For more information, please refer to datasheet
Documents
| ADS5483IRGCT Datasheet |
More Information
The ADS5481/ADS5482/ADS5483 (ADS548x) is a 16-bit family of analog-to-digital converters (ADCs) that operate from both a 5-V supply and 3.3-V supply while providing LVDS-compatible digital outputs. The ADS548x integrated analog input buffer isolates the internal switching of the onboard track and hold (T&H) from disturbing the signal source while providing a high-impedance input. An internal reference generator is also provided to simplify the system design.
