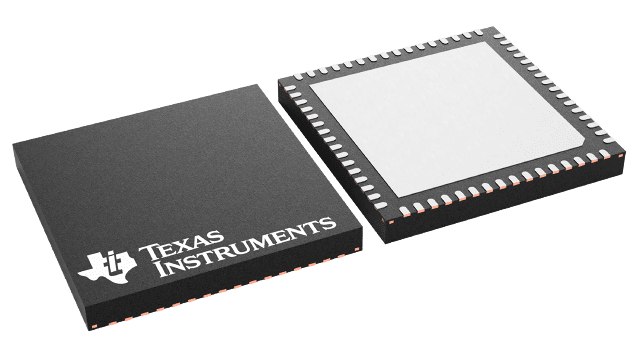

ADS5484IRGCT Texas Instruments - Yeehing Electronics
16-Bit, 170-MSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 130.521 |
| 100 — 249 | 118.144 |
| 250 — 999 | 114.768 |
| 1,000 + | 78.76 |
The above prices are for reference only.
Specifications
| Manufacturer | Analog Devices Inc. |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | AD7865 |
| Mounting Style | SMD/SMT |
| Package / Case | QFP-44 |
| Resolution | 14 bit |
| Number of Channels | 4 Channel |
| Sampling Rate | 350 kS/s |
| Input Type | Single-Ended |
| Interface Type | Parallel |
| Architecture | SAR |
| Reference Type | External, Internal |
| SNR - Signal to Noise Ratio | 80 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Packaging | Reel |
| Height | 2 mm |
| Input Voltage | +/- 2.5 V |
| Length | 10 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 115 mW |
| Type | S/H ADC |
| Width | 10 mm |
| Brand | Analog Devices |
| DNL - Differential Nonlinearity | +/- 1 LSB |
| Gain Error | +/- 14 LSB |
| INL - Integral Nonlinearity | +/- 1.5 LSB |
| Moisture Sensitive | Yes |
| Number of ADC Inputs | 4 Input |
| Operating Supply Voltage | 5 V |
| Pd - Power Dissipation | 160 mW |
| Product Type | ADCs - Analog to Digital Converters |
| Sample and Hold | Yes |
| Factory Pack Quantity | 800 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.017588 oz |
For more information, please refer to datasheet
Documents
| ADS5484IRGCT Datasheet |
More Information
The ADS5484/ADS5485 (ADS548x) is a 16-bit family of analog-to-digital converters (ADCs) that operate from both a 5-V supply and 3.3-V supply while providing LVDS-compatible digital outputs. The ADS548x integrated analog input buffer isolates the internal switching of the onboard track and hold (T & H) from disturbing the signal source while providing a high-impedance input. An internal reference generator is provided to simplify the system design. Internal dither is available to improve SFDR. These devices are drop-in compatible to the ADS5483/5482/5481, creating a pin-compatible family from 80 – 200 MSPS. Designed for highest total ENOB, the ADS548x family has outstanding low noise performance and spurious-free dynamic range.
