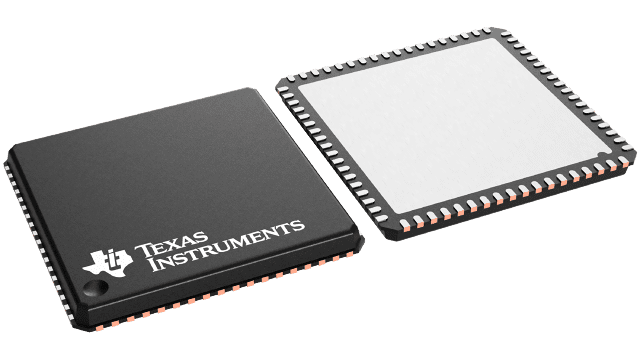

ADS54J20IRMP Texas Instruments - Yeehing Electronics
Dual-Channel, 12-Bit, 1.0-GSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 473.256 |
| 100 — 249 | 435.696 |
| 250 — 999 | 375.6 |
| 1,000 + | 331.28 |
The above prices are for reference only.
Specifications
| Manufacturer | Analog Devices Inc. |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | AD9648 |
| Mounting Style | SMD/SMT |
| Package / Case | LFCSP-64 |
| Resolution | 14 bit |
| Number of Channels | 2 Channel |
| Sampling Rate | 125 MS/s |
| Input Type | Differential |
| Interface Type | Parallel |
| Architecture | Pipeline |
| Reference Type | External, Internal |
| SNR - Signal to Noise Ratio | 75.4 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Height | 0.83 mm |
| Input Voltage | 2 Vp-p |
| Length | 9 mm |
| Number of Converters | 2 Converter |
| Output Type | LVDS |
| Type | S/H ADC |
| Width | 9 mm |
| Brand | Analog Devices |
| Development Kit | AD9648-125EBZ |
| DNL - Differential Nonlinearity | - 0.5 LSB/1.2 LSB |
| Gain Error | +/- 5.1 %FSR |
| INL - Integral Nonlinearity | +/- 2.3 LSB |
| Moisture Sensitive | Yes |
| Number of ADC Inputs | 2 Input |
| Operating Supply Voltage | 1.8 V |
| Pd - Power Dissipation | 220.5 mW |
| Product Type | ADCs - Analog to Digital Converters |
| Sample and Hold | Yes |
| Factory Pack Quantity | 750 |
| Subcategory | Data Converter ICs |
For more information, please refer to datasheet
Documents
| ADS54J20IRMP Datasheet |
More Information
The ADS54J20 is a low-power, wide-bandwidth, 12-bit, 1.0-GSPS, dual-channel, analog-to-digital converter (ADC). Designed for high signal-to-noise ratio (SNR), the device delivers a noise floor of –157 dBFS/Hz for applications aiming for highest dynamic range over a wide instantaneous bandwidth. The device supports the JESD204B serial interface with data rates up to 10 Gbps, supporting two or four lanes per ADC. The buffered analog input provides uniform input impedance across a wide frequency range and minimizes sample-and-hold glitch energy. Optionally, each ADC channel can be connected to a wideband digital down-converter (DDC) block. The ADS54J20 provides excellent spurious-free dynamic range (SFDR) over a large input frequency range with very low power consumption.
