Texas Instruments

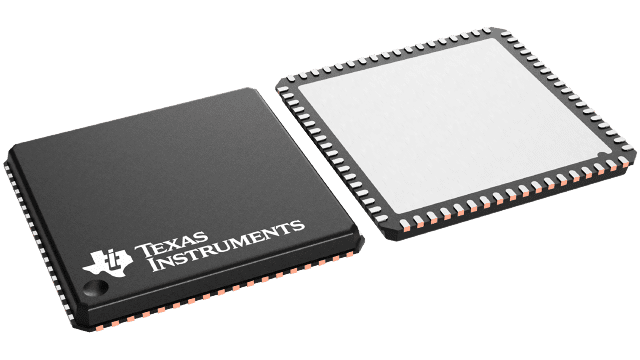

ADS54J42IRMP
ADS54J42IRMP
Couldn't load pickup availability
ADS54J42IRMP Texas Instruments - Yeehing Electronics
Dual-Channel, 14-Bit, 625-MSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 461.059 |
| 100 — 249 | 424.467 |
| 250 — 999 | 365.92 |
| 1,000 + | 322.74 |
The above prices are for reference only.
Specifications
| Manufacturer | Maxim Integrated |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | MAX1167B |
| Resolution | 16 bit |
| Number of Channels | 4 Channel |
| Sampling Rate | 200 kS/s |
| Input Type | Single-Ended |
| Interface Type | SPI |
| Architecture | SAR |
| Reference Type | External, Internal |
| Packaging | Reel |
| Number of Converters | 1 Converter |
| Brand | Maxim Integrated |
| Operating Supply Voltage | 4.75 V to 5.25 V |
| Pd - Power Dissipation | 667 mW |
| Product Type | ADCs - Analog to Digital Converters |
| Reference Voltage | 4.096 V |
| Factory Pack Quantity | 2500 |
| Subcategory | Data Converter ICs |
| Part # Aliases | MAX1167B |
For more information, please refer to datasheet
Documents
| ADS54J42IRMP Datasheet |
More Information
The ADS54J42 is a low-power, wide-bandwidth, 14-bit, 625-MSPS, dual-channel, analog-to-digital converter (ADC). Designed for high signal-to-noise ratio (SNR), the device delivers a noise floor of –157 dBFS/Hz for applications aiming for highest dynamic range over a wide instantaneous bandwidth. The device supports the JESD204B serial interface with data rates up to 6.25 Gbps. The buffered analog input provides uniform input impedance across a wide frequency range and minimizes sample-and-hold glitch energy. Each ADC channel optionally can be connected to a wideband digital down-converter (DDC) block. The ADS54J42 provides excellent spurious-free dynamic range (SFDR) over a large input frequency range with very low power consumption.
