ADS54T02IZAY Texas Instruments - Yeehing Electronics
2-ch 750MSPS BTS Feedback and Receiver IC
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 448.867 |
100 — 249 | 406.302 |
250 — 999 | 394.693 |
1,000 + | 270.87 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Analog to Digital Converters - ADC |
RoHS | Y |
Series | ADS54T02 |
Mounting Style | SMD/SMT |

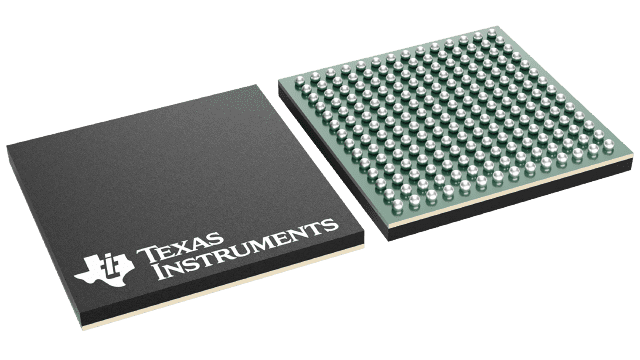

Package / Case | NFBGA-196 |
Resolution | 12 bit |
Number of Channels | 2 Channel |
Sampling Rate | 750 MS/s |
Interface Type | Serial |
Architecture | Pipeline |
Analog Supply Voltage | 3.15 V to 3.45 V |
Digital Supply Voltage | 1.7 V to 1.9 V |
SNR - Signal to Noise Ratio | 60.9 dB |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Packaging | Tray |
Features | Decimating Filter, Differential Inputs, High Dynamic Range, Nap Mode, Out of Range Indicator, Power |
Output Type | DDR, LVDS |
Power Consumption | 2.1 W |
Brand | Texas Instruments |
Moisture Sensitive | Yes |
Number of ADC Inputs | 2 Input |
Operating Supply Voltage | 3.15 V to 3.45 V |
Product Type | ADCs - Analog to Digital Converters |
SFDR - Spurious Free Dynamic Range | 74 dB |
Factory Pack Quantity | 160 |
Subcategory | Data Converter ICs |
For more information, please refer to datasheet
Documents
ADS54T02IZAY Datasheet |
More Information
The ADS54T02 is a high linearity dual channel 12-bit, 750 MSPS analog-to-digital converter (ADC) easing front end filter design for wide bandwidth receivers. The analog input buffer isolates the internal switching of the on-chip track-and-hold from disturbing the signal source as well as providing a high-impedance input. Two output modes are available for the output data – it can be decimated by two or the data can be output in burst mode. The burst mode output is designed specifically for DPD feedback applications where high resolution output data is available for a short period of time. Designed for high SFDR, the ADC has low-noise performance and outstanding spurious-free dynamic range over a large input-frequency range. The device is available in a 196pin BGA package and is specified over the full industrial temperature range (–40°C to 85°C).
