ADS54T04IZAY Texas Instruments - Yeehing Electronics

2-ch 500MSPS BTS Feedback and Receiver IC

Pricing (USD)

Quantity	Unit Price
1 — 99	247.95
100 — 249	224.438
250 — 999	218.025
1,000 +	149.62

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Series	ADS54T04
Mounting Style	SMD/SMT

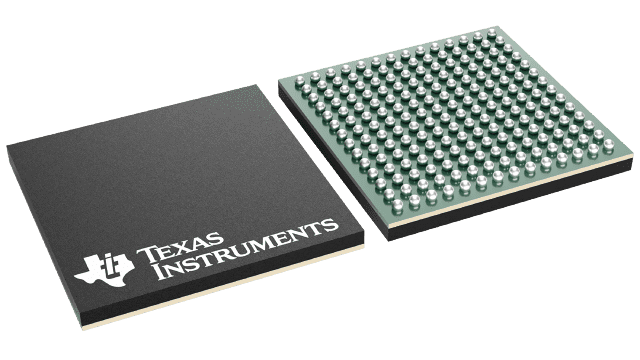

Package / Case	NFBGA-196
Resolution	12 bit
Number of Channels	2 Channel
Sampling Rate	500 MS/s
Interface Type	Serial
Architecture	Pipeline
Analog Supply Voltage	3.15 V to 3.45 V
Digital Supply Voltage	1.7 V to 1.9 V
SNR - Signal to Noise Ratio	60.8 dB
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Tray
Features	Decimating Filter, Differential Inputs, High Dynamic Range, Nap Mode, Out of Range Indicator, Power
Number of Converters	2 Converter
Output Type	DDR, LVDS
Power Consumption	1.6 W
Brand	Texas Instruments
Moisture Sensitive	Yes
Number of ADC Inputs	2 Input
Operating Supply Voltage	3.15 V to 3.45 V
Pd - Power Dissipation	2.3 W
Product Type	ADCs - Analog to Digital Converters
SFDR - Spurious Free Dynamic Range	78 dB
Factory Pack Quantity	160
Subcategory	Data Converter ICs

For more information, please refer to datasheet

Documents

ADS54T04IZAY Datasheet

More Information

The ADS54T04 is a high linearity dual channel 12-bit, 500 MSPS analog-to-digital converter (ADC) easing front end filter design for wide bandwidth receivers. The analog input buffer isolates the internal switching of the on-chip track-and-hold from disturbing the signal source as well as providing a high-impedance input. Two output modes are available for the output data – it can be decimated by two or the data can be output in burst mode. The burst mode output is designed specifically for DPD feedback applications where high resolution output data is available for a short period of time. Designed for high SFDR, the ADC has low-noise performance and outstanding spurious-free dynamic range over a large input-frequency range. The device is available in a 196pin BGA package and is specified over the full industrial temperature range (–40°C to 85°C).
