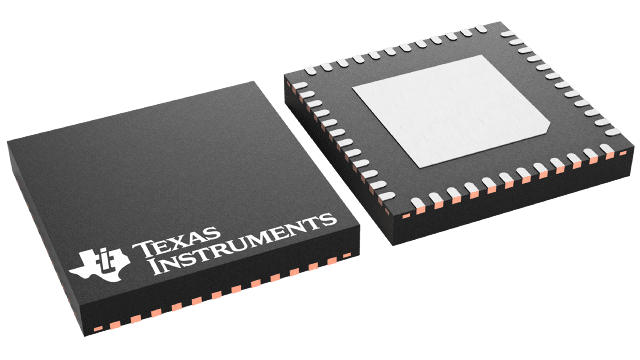

ADS5517IRGZR Texas Instruments - Yeehing Electronics

11-Bit, 200-MSPS Analog-to-Digital Converter (ADC)

Pricing (USD)

Quantity	Unit Price
1 — 99	48.741
100 — 249	43.326
250 — 999	35.616
1,000 +	25.49

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Series	ADS5517
Mounting Style	SMD/SMT
Package / Case	VQFN-48
Resolution	11 bit
Number of Channels	1 Channel
Sampling Rate	200 MS/s
Input Type	Differential
Interface Type	Parallel
Architecture	Pipeline
Reference Type	External, Internal
Analog Supply Voltage	3.3 V
Digital Supply Voltage	3 V to 3.6 V
SNR - Signal to Noise Ratio	67.1 dB
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Features	Low Power
Height	0.9 mm
Length	7 mm
Number of Converters	1 Converter
Output Type	LVDS
Power Consumption	1.23 W
Width	7 mm
Brand	Texas Instruments
Development Kit	ADS5517EVM
DNL - Differential Nonlinearity	+/- 1 LSB
ENOB - Effective Number of Bits	10.8 Bit
INL - Integral Nonlinearity	+/- 1.5 LSB
Moisture Sensitive	Yes
Operating Supply Voltage	3 V to 3.6 V
Pd - Power Dissipation	1.4 W
Product Type	ADCs - Analog to Digital Converters
SFDR - Spurious Free Dynamic Range	84 dB
SINAD - Signal to Noise and Distortion Ratio	66 dB
Factory Pack Quantity	2500
Subcategory	Data Converter ICs
Unit Weight	0.004868 oz

For more information, please refer to datasheet

Documents

ADS5517IRGZR Datasheet

More Information

ADS5517 is a high performance 11-bit, 200-MSPS A/D converter. It offers state-of-the art functionality and performance using advanced techniques to minimize board space. With high analog bandwidth and low jitter input clock buffer, the ADC supports both high SNR and high SFDR at high input frequencies. It features programmable gain options that can be used to improve SFDR performance at lower full-scale analog input ranges.
