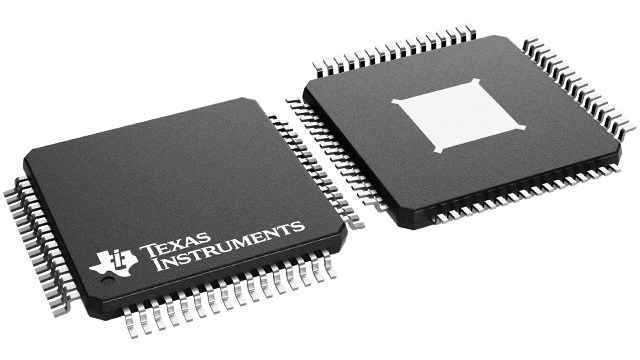

ADS5541IPAP Texas Instruments - Yeehing Electronics
14-Bit, 105-MSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 102.757 |
| 100 — 249 | 99.667 |
| 250 — 999 | 82.978 |
| 1,000 + | 54.08 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS5541 |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-64 |
| Resolution | 14 bit |
| Number of Channels | 1 Channel |
| Sampling Rate | 105 MS/s |
| Input Type | Differential |
| Interface Type | Parallel |
| Architecture | Pipeline |
| Reference Type | Internal |
| Analog Supply Voltage | 3.3 V |
| Digital Supply Voltage | 3 V to 3.6 V |
| SNR - Signal to Noise Ratio | 73.6 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tray |
| Features | High Performance |
| Height | 1 mm |
| Length | 10 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 710 mW |
| Width | 10 mm |
| Brand | Texas Instruments |
| Development Kit | ADS5541EVM |
| DNL - Differential Nonlinearity | +/- 0.25 LSB |
| ENOB - Effective Number of Bits | 11.4 Bit |
| INL - Integral Nonlinearity | +/- 5 LSB |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3 V to 3.6 V |
| Pd - Power Dissipation | 611 mW |
| Product Type | ADCs - Analog to Digital Converters |
| SFDR - Spurious Free Dynamic Range | 86 dB |
| SINAD - Signal to Noise and Distortion Ratio | 72 dB |
| Factory Pack Quantity | 160 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.009108 oz |
For more information, please refer to datasheet
Documents
| ADS5541IPAP Datasheet |
More Information
The ADS5541 is a high-performance, 14-bit, 105MSPS analog-to-digital converter (ADC). To provide a complete converter solution, it includes a high-bandwidth linear sample-and-hold stage (S&H) and internal reference. Designed for applications demanding the highest speed and highest dynamic performance in a small space, the ADS5541 has excellent analog power dissipation of 571mW at 3.3V single-supply voltage. This allows an even higher system integration density. The provided internal reference simplifies system design requirements. The parallel CMOS compatible outputs ensure seamless interfacing with common logic.
