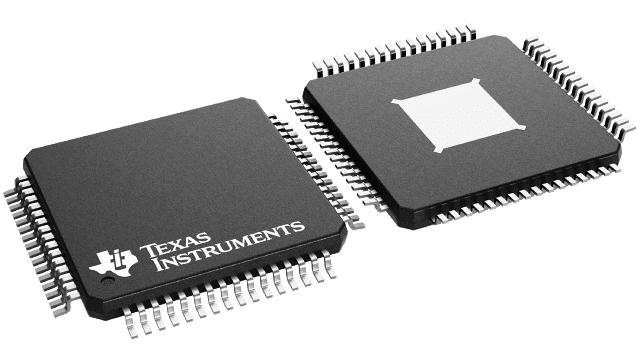

ADS5542IPAP Texas Instruments - Yeehing Electronics

14-Bit, 80-MSPS Analog-to-Digital Converter (ADC)

Pricing (USD)

Quantity	Unit Price
1 — 99	64.563
100 — 249	57.389
250 — 999	47.177
1,000 +	29.54

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

ADS5542IPAP Datasheet

More Information

The ADS5542 is a high-performance, 14-bit, 80 MSPS analog-to-digital converter (ADC). To provide a complete converter solution, it includes a high-bandwidth linear sample-and-hold stage (S&H) and internal reference. Designed for applications demanding the highest speed and highest dynamic performance in little space, the ADS5542 has excellent power consumption of 545 mW at 3.3-V single-supply voltage. This allows an even higher system integration density. The provided internal reference simplifies system design requirements. Parallel CMOS-compatible output ensures seamless interfacing with common logic.
